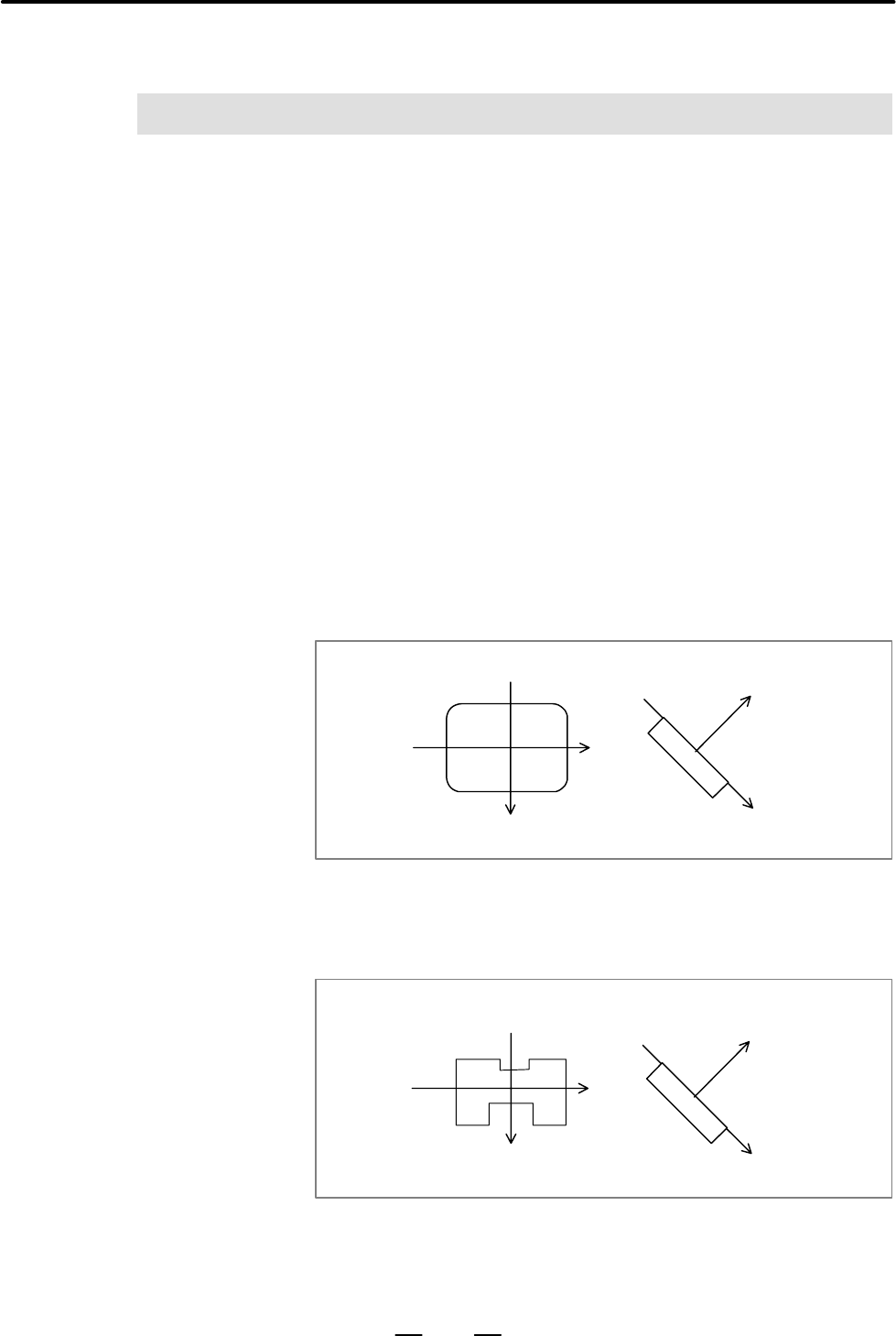

SLANTED SURFACE MACHINING

B–63304EN/02

2. DEFINING PART

FIGURES (MENU NO. 2)

774

DEFINING PART FIGURES (MENU NO. 2)

The following machining figures can be defined for slanted surfaces.

The same method as for the conventional Y–axis side–facing figure is

used to enter the machining figures.

Machining figures can be created on an arbitrary slanted surface no matter

whether the first or second spindle is involved.

Up to 10 figures (including Y–axis end facing/side facing figures) can be

defined.

D SL–CIRCLE HOLE (up to six C–axis phase angles can be specified.)

D SL–LINE HOLE (up to six C–axis phase angles can be specified.)

D SL–RANDOM HOLE (up to six C–axis phase angles can be

specified.)

D SLANT PATTERN (up to six C–axis phase angles can be specified.)

Data for a rectangle with rounded corner R (pocket) can be entered for

a slanted plane.

Each side of the rectangle is parallel to one of the coordinate axes that

form the plane.

Y’

Z’

X’

D SLANT LINE (only one C–axis phase angle can be specified.)

An arbitrary figure formed with arcs and straight lines can be entered

for a slanted plane, using symbolic keys (arrows). The tool can be

moved at the right, left, or on a line, of the entered figure.

Z’

X’
