B–63304EN/02

2. CAUTIONS FOR USING

Symbolic FAPT

VARIOUS FUNCTIONS AND

PRECAUTIONS OF Symbolic FAPT

387

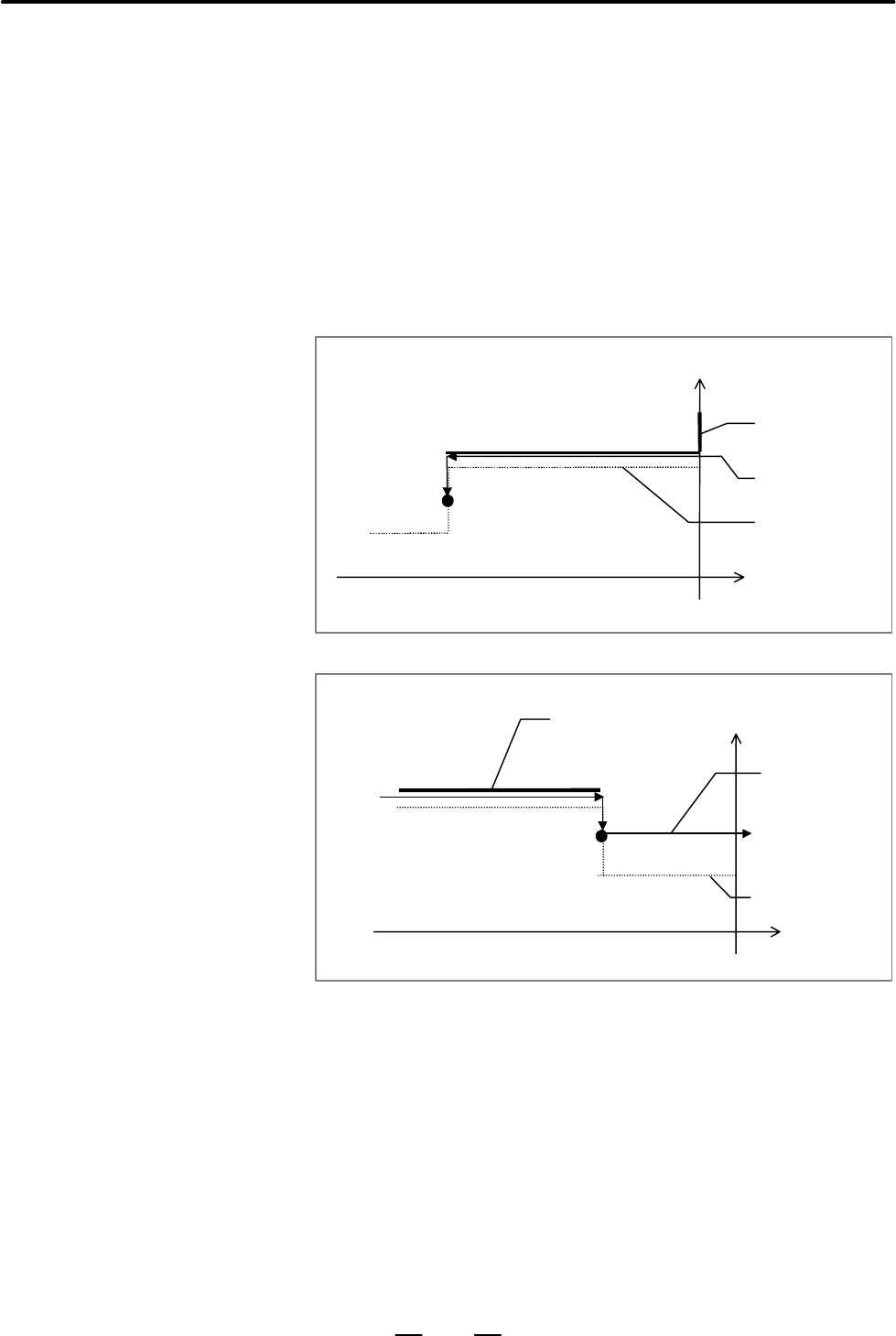

(21) If the tool escapes to the position “blank figure inner surface +

clearance” in inner surface roughing

If the cutting end point (point C in Fig. 2.5 (ag)) is on the blank

figure, the specification states that the tool is to escape to the position

“blank figure inner surface + clearance” in the X–axis direction.

This is intended to keep the tool from interfering with the workpiece.

In other words, the tool is moved in the x–axis direction because it

is determined that if the cutting end point is on the blank figure, the

tool interferes with the blank figure when it escapes in the Z–axis

direction. Even if the cutting end point is on the blank figure,

moving the tool in the Z–axis direction will output a tool path where

the tool crosses the blank figure in the case shown in Fig. 2.5 (ah).

Part figure

Tool path

Point A

Blank figure

Fig. 2.5 (ag)

Part figure

Tool path

Point A

Blank figure

Fig. 2.5 (ah)
