FANUC Picture Operators manual Page 103

Operators manual
B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN
- 89 -
- Registering, deleting, and editing language keys

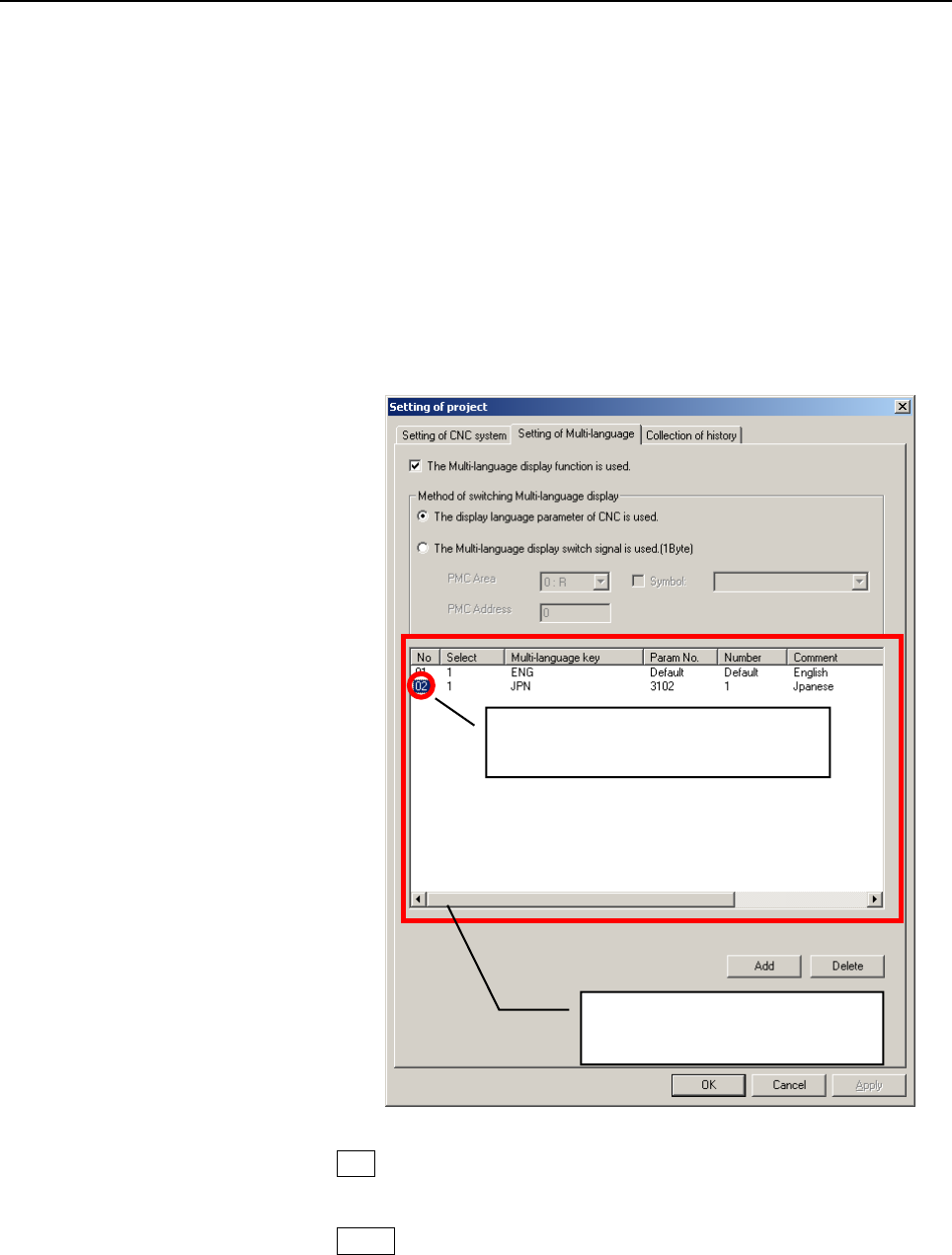

Register the “Multi-language key” of the language to be created using
the frame in the dialog box shown below. You can check the entire
comment by using the horizontal scroll bar. For each language
provided by the custom screen, register a unique “Multi-language
key”. Registered multi-language keys will be used as list members in
the combo box used to select the language to be set if setting a caption
of a control and as the language sheet names of spreadsheets related to
text messages. The “Select” setting is provided here, which is used to
select the language to be created during the Make MEM step. If you
have set a language for a caption property, but on the custom screen
on the CNC, the language does not require switching display, the
creation of the data for this language can be suppressed by unchecking
Select.
Add button
This button is used to additionally register a new multi-language
key. It displays the Language change setting dialog box.
Delete button
This button is used to delete a registered multi-language key. It
displays a dialog box for confirming deletion.
Double-clicking this numeric value (item No.)
causes an editing dialog box to appear.
You can check the entire comment by
using the horizontal scroll bar.
Previous page
Next page
