2.2.8.2 Setting of properties

To display the Property Pages dialog box (<3>), first place the mouse

pointer on the control, then right-click. When the edit menu appears,

select Properties... to display the dialog box. The Property Pages

dialog box can also be displayed by double-clicking the control.

By clicking a tab of the Property Pages dialog box, the user can set the

property items related to the tab name.

The user can quit the dialog box by clicking OK or Cancel.

2.2.8.3 Moving and resizing controls

[Movement]

To move the position of a control, move the mouse point onto the

control then drag the mouse while holding down the left button.

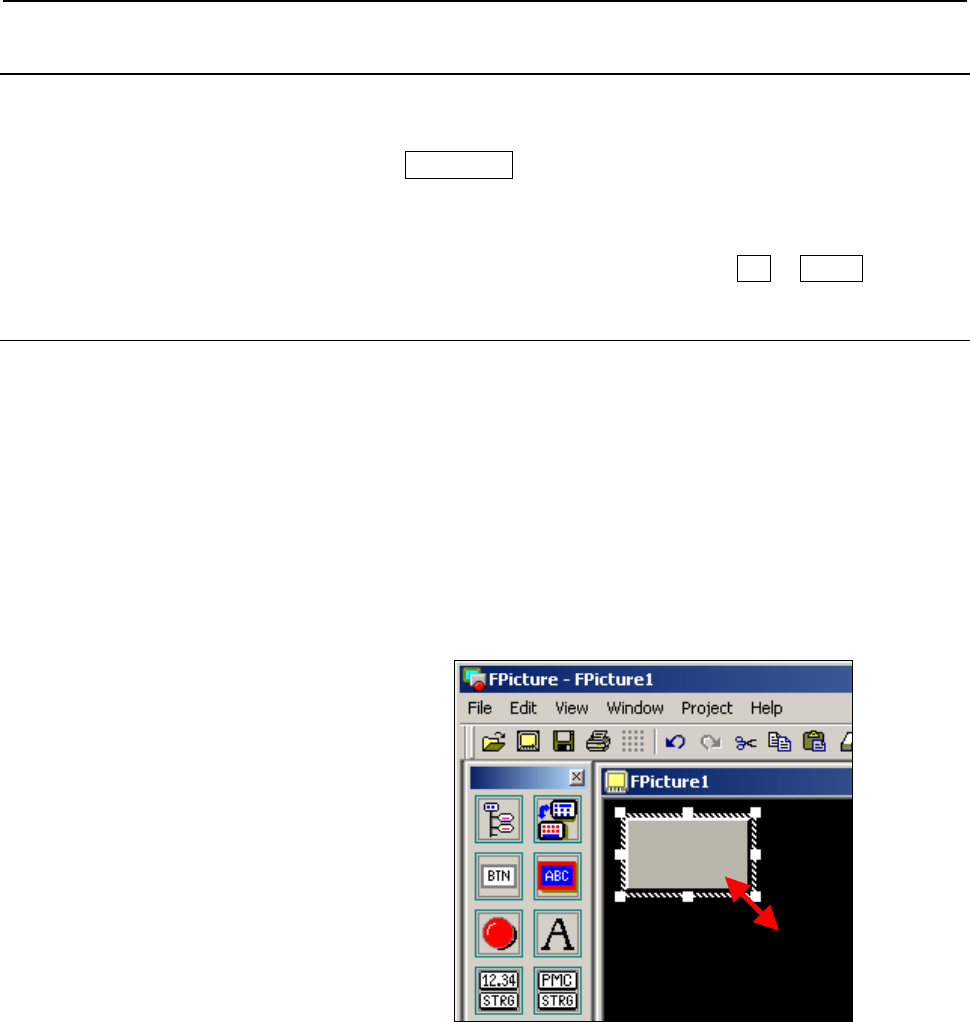

[Resizing]

Select and click a desired control. At the four corners and the

center of each side of the selected control, a handle () is

displayed. To resize the control, place the mouse pointer on a

handle. The shape of the mouse pointer changes to . In this

state, the control can be resized by dragging the mouse while

holding down the left button.
