FANUC Picture Operators manual Page 289

Operators manual
B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN
- 275 -
2.5.3.2 Method of creating a parent screen and child screens
When creating a screen including multiple child screens as in the
case of a machine operator’s panel screen, first determine the
layout display of the entire screen including composited child
screens.
If you attach a label control to the display area background of
each child screen at this time, the area usable for creating another
switchable child screen with the same size and display area can
be indicated for child screen switching operation.
When the layout of the entire screen is completed, select a group
of controls for making up each child screen then move the
controls to a new child screen form.

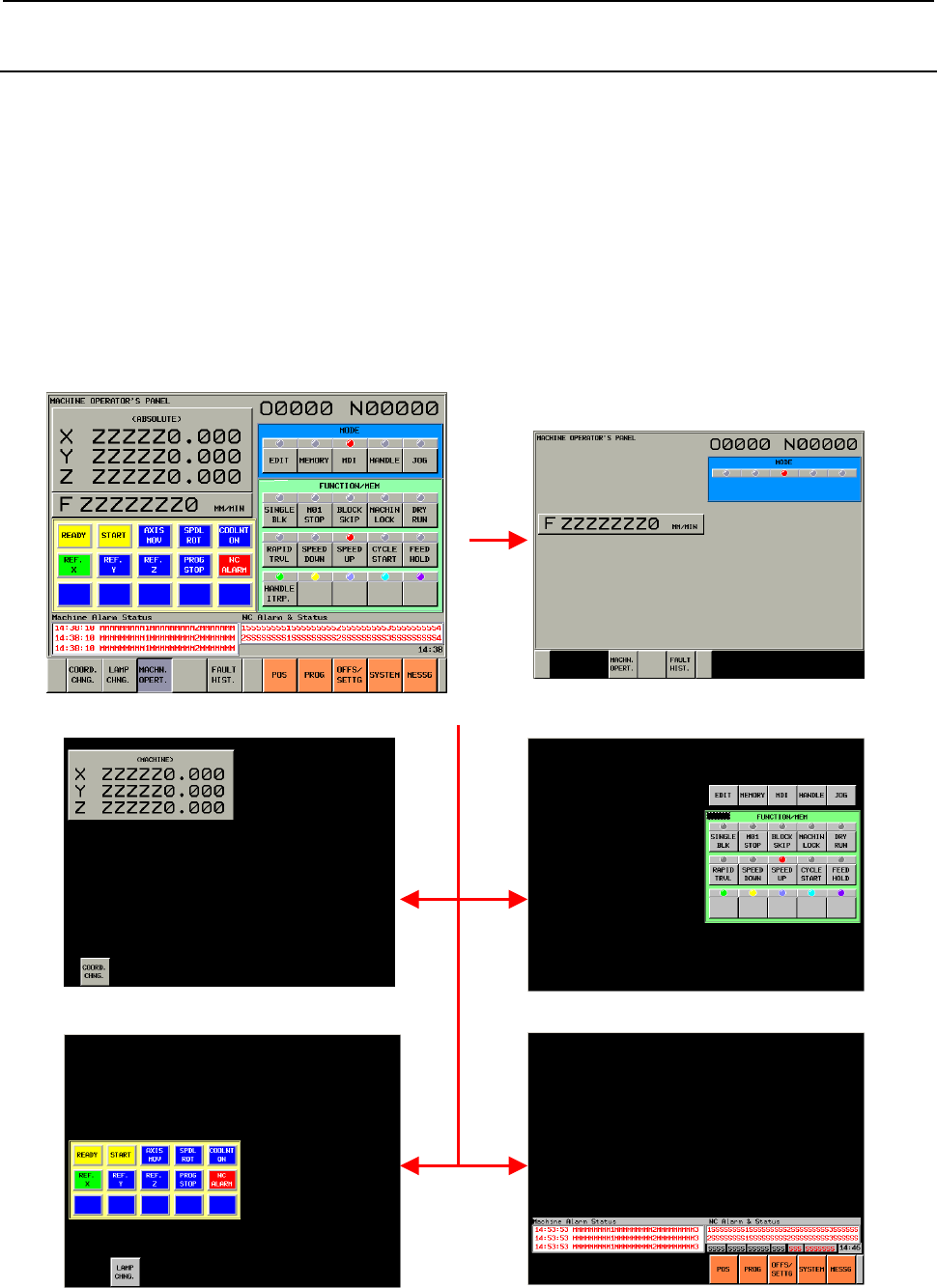

Machine operator’s panel parent screen
and controls
a. Coordinate display child screen and
controls
b. Lamp display child screen and controls
Layout display of entire machine operator’s
p
anel screen
c. Operation button display child screen
and controls
d. Alarm display child screen and controls
