2.2.8 Edit of Screen Form

2.2.8.1 Method of placing controls on a form

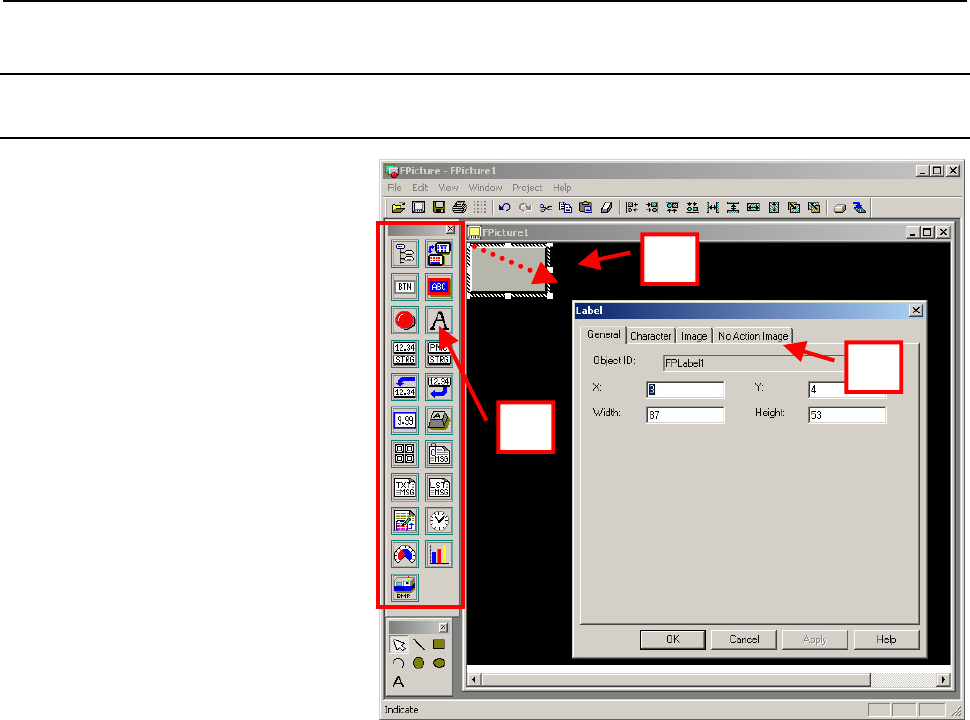

1. Click a desired control among the controls for FANUC

PICTURE in the tool box of <1>. Only the controls provided by

FANUC PICTURE can be used.

2. When the mouse pointer is moved onto the form, the shape of the

mouse pointer changes from an arrow-shaped pointer to a

+-shaped pointer. If this shape change is not made, start all over

again from the control selection.

3. Move the mouse pointer to a desired upper-left corner position

where the control is to be pasted. After moving the mouse pointer,

paste the control according to the operation of <2>.

4. While holding down the left mouse button, drag the mouse

diagonally from upper left to lower right. When a desired size is

obtained, release the left button.

5. This completes the pasting of a control.
