FANUC Picture Operators manual Page 80

Operators manual
2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01
- 66 -
2.3.1.2 Editing text message files
Structure of a text file and editing it

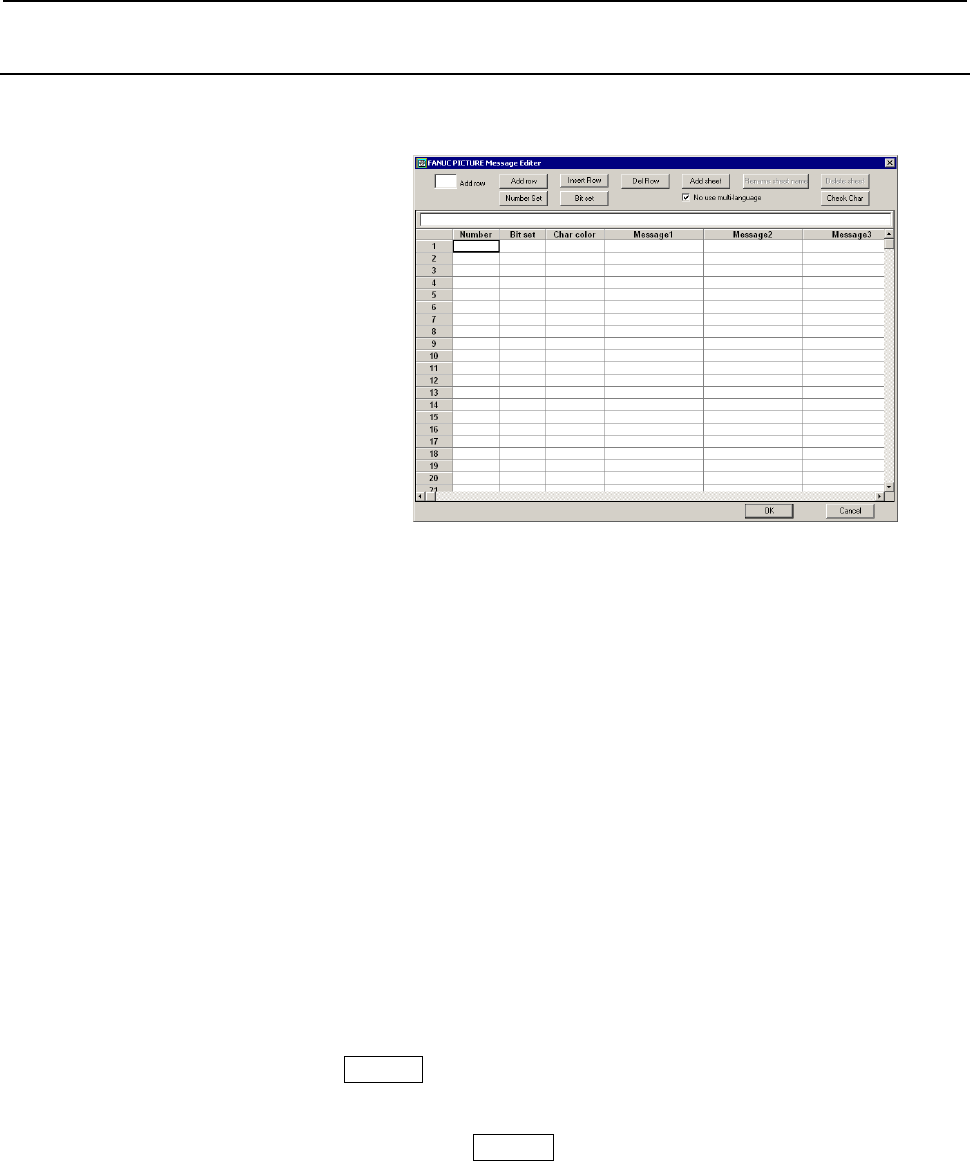

A text file has a spreadsheet structure such as that shown below.
Number:
If using numbers as the interface with the PMC, enter the text
number. If this number is written to the number interface of the
PMC, the written character string is displayed to a [Message]
input cell.
Bit set:
If using bit correspondence specifications as the interface with
the PMC, specify the serial number for the number of bits used.
You can specify a numbers up to 511, with the search start bit
assumed to be 0.
Char color:
Specify the message display character color. Double-clicking the
left mouse button causes a color setting dialog box to appear;
select the desired color.
Message1-4:
Divide a message to be displayed with the text string display
control into four and then input them. Up to 255 characters can
be input in one cell. Messages of up to 1020 characters in total
can be created.
Add row :
This spreadsheet contains 100 rows. If they are not enough, enter
the number of additional rows in the [Add row] input field and
click the Add row button, and the specified number of rows are
added at the end of the last row.
