FANUC Picture Operators manual Page 183

Operators manual
B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN
- 169 -
2.3.11
Numeral Indication Control with Key Input
This control displays the value of a specified PMC area. Touching the
numeral indication section changes the background color to the ON
color (focused state), and allows numerals to be written from the key
input buffer control by pressing the [INPUT] key.
For numeral input, this control needs to be used together with a key
input buffer control. Only one control is focused on the screen. When
another numeral indication control with key input not focused is
touched, the focused state of the previously focused control is released,
and the new touched control is focused. When the new focused control
is touched again, the focused state of the control is released.

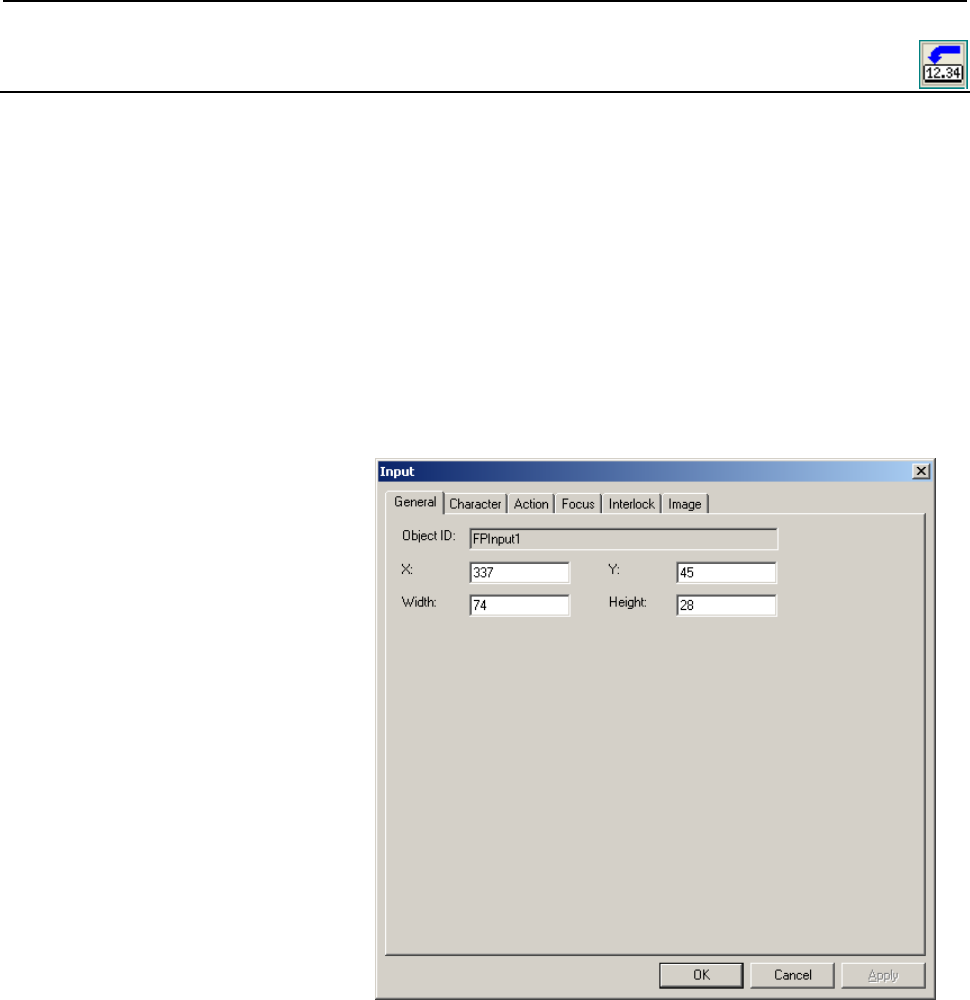

Property Pages
- General
Object ID:
Object ID managed in the form. This ID is automatically
assigned. The user cannot change this ID.
X, Y:
Set the coordinates of the upper-left corner of the numeral
indication control with key input.
Width, Height:
Set the width and height of the numeral indication control with
key input.
