2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 30 -

2.2.7.3 Collection of history

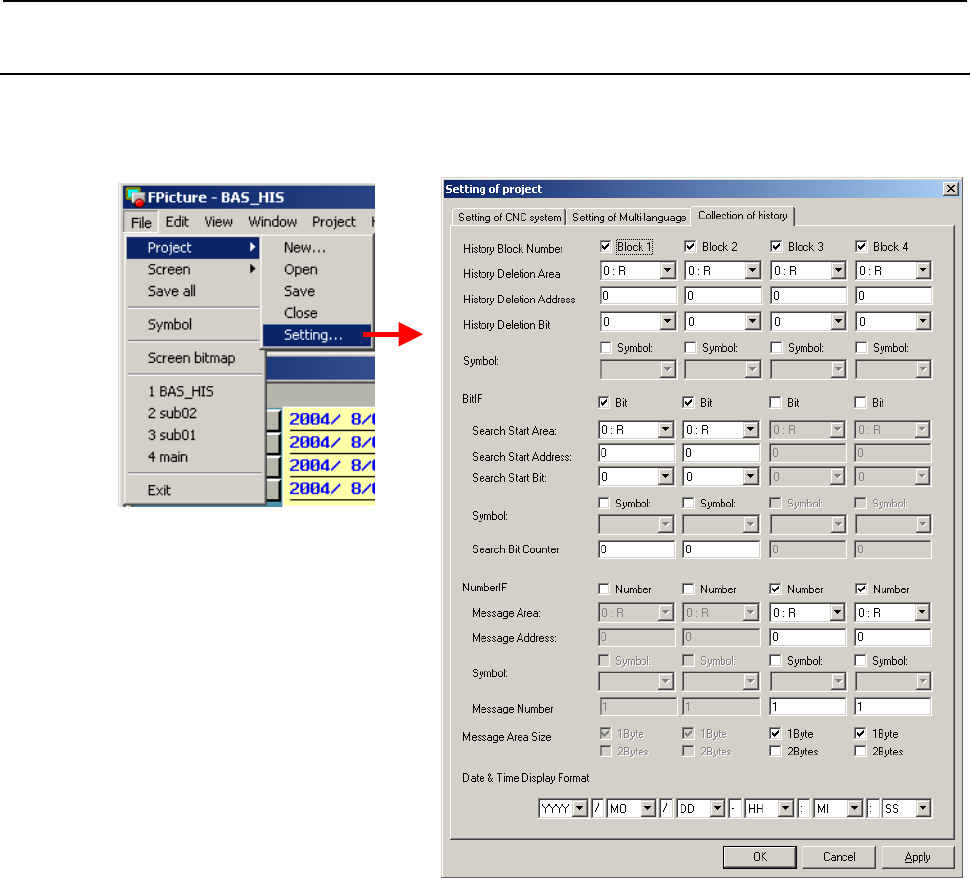

Pressing the FANUC PICTURE menu bar [File]-[Project]-[Setting…]

and clicking the [Collection of history] tab causes the dialog box

shown below to appear.

The history message indication control of FANUC PICTURE can

display a summary of messages according to a message indication

request from the PMC. A function is provided which collects such

message display history. By specifying the data resulting from

collecting message display history with a history message indication

control, you can perform history display in addition to summary

display. This dialog box tab is used to set up message indication

history collection.

The history collection function conforms to the following

specifications:

1. Collects history of message indication signals at up to four

locations.

2. Records history of 300 message indication signals per location. A

set or record of 300 signals at a single location is called a block.

3. The history items to be recorded are the number, occurrence time,

and cancellation time of an indicated message, plus the history

block deletion date and time for each block.
