FANUC Picture Operators manual Page 248

Operators manual
2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01
- 234 -

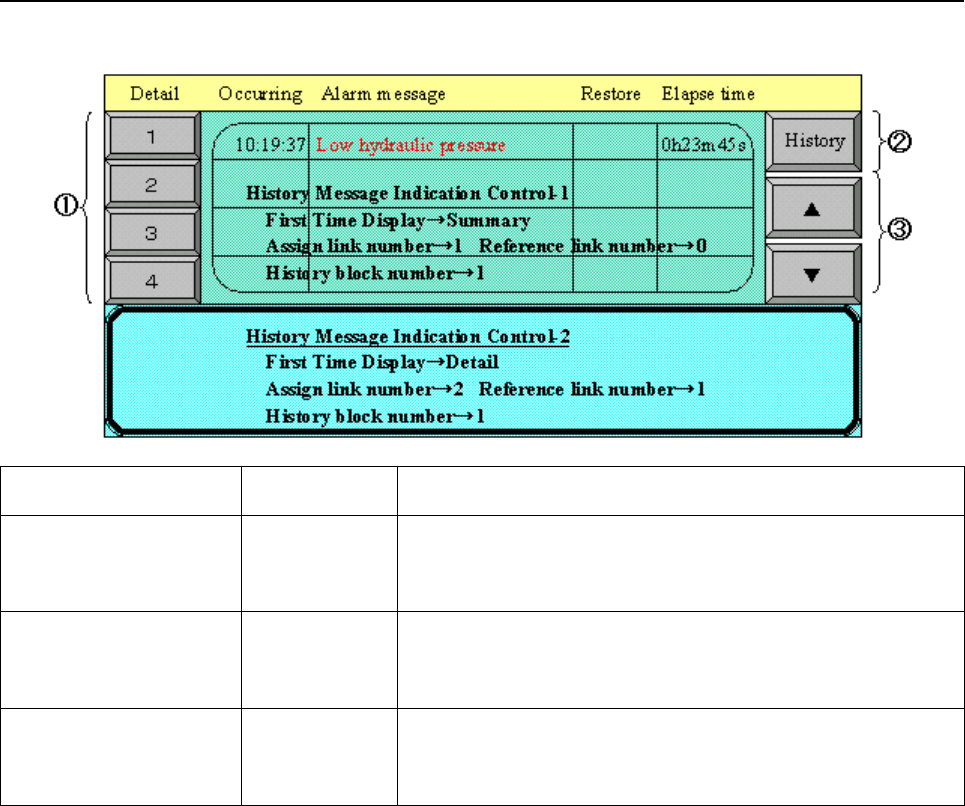

History display screen setting example
Button control/History
Display button control
Link Number at
output button
Explanation of cooperation action
<1> Setting of detail
message display
switch button
2
When the button is pressed, “Line n of detail” is output to history
message indication control 2, and history message indication control
2 displays the details of the message on “Line n” displayed by the
history message indication control with reference link number 1.
<2> Setting of
summary/history/detail
switch button
1
When the button is pressed, a display screen type switching
command is output to history message indication control 1. On
history message indication control 1, screen type switching between
summary and history is executed.
<3> Page Switch button 1
When the button is pressed, a page UP or DOWN switching
command is output to history message indication control 1. On
history message indication control 1, the page switching in
accordance with the command is executed.
