FANUC Picture Operators manual Page 69

Operators manual
B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN
- 55 -
2.2.10 Write to Card
Using the procedure described below, operator’s panel screen data
(such as FPF0FPDT.MEM or CEX0FPDT.MEM) and the FP driver
are copied to the memory card.

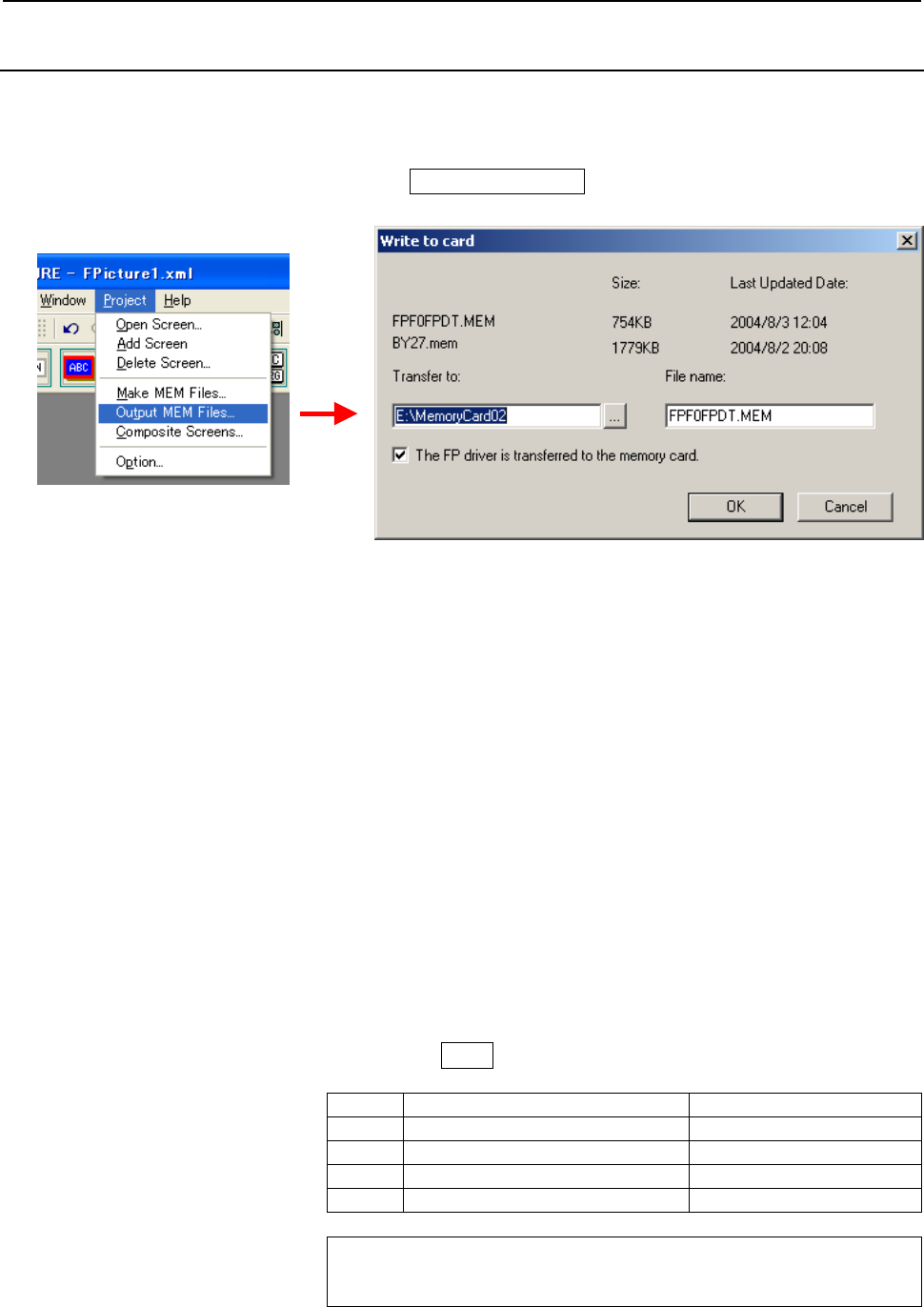

Clicking Output MEM File on the menu displays the Write to card
dialog box.
The file name, creation date, and memory size of operator’s panel
screen data created with Make MEM are displayed.
In the Transfer Place edit box, specify a screen data transfer
destination (copy destination). In this case, the memory card drive
must always be specified. When screen data is to be transferred from
the memory card to the F-ROM of the CNC, MEM data must be
copied to the root directory of the memory card drive.
In the File name field, enter a desired file name at a location where a
transfer destination file name is arbitrarily specified. This file name is
a name used for file management by Windows and is not a file name
on the F-ROM. The name FPF0FPDT or CEX0FPDT is assigned to
this file.
In usual card write operation, screen data only is copied. However,
when screen data is initially written to the CNC, or FANUC
PICTURE is upgraded, however, the FP driver data also needs to be
copied. In this case, check a check box for transfer to the driver
system.
Depending on the type of the target CNC, a transfer driver software
file indicated in the table below is automatically selected and copied.
Clicking the OK button executes copy operation.
No. CNC Type Name of FP-Driver
1
Series 30i/31i/32i -MODEL A
BY27.mem
2
Series 16i/18i/21i-MODEL A/B
BY17.mem
3
Power Mate i-H
BY18.mem
4
Power Mate i-D
BY19.mem
FP driver: Short for FANUC PICTURE driver. The operation of the driver is
displayed on the LCD with a touch panel on the CNC by analyzing touch
panel screen data created on the personal computer.
