B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 25 -

2.2.7 Setting of Project

Set up the common items for the entire project.

2.2.7.1 Setting of CNC system

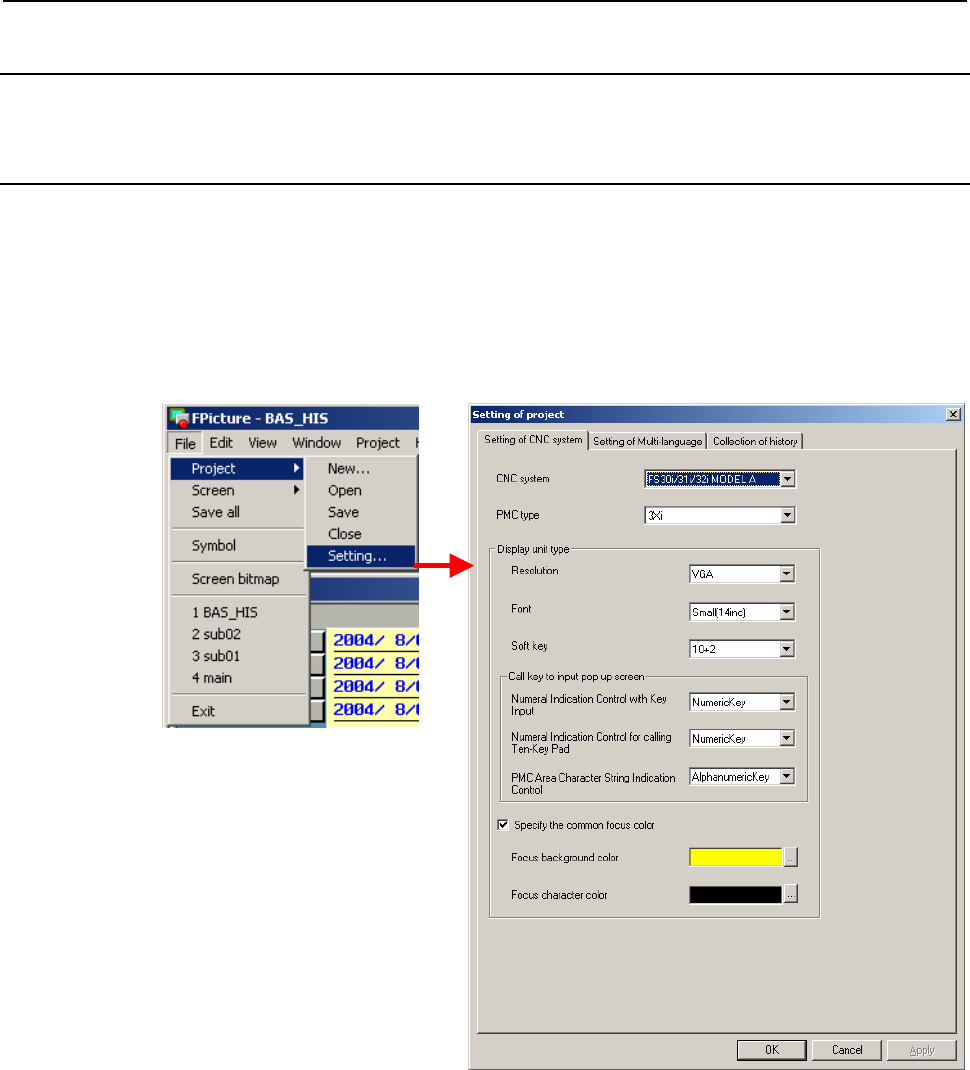

Pressing the [Setting…] -[project]-[file menu bar] button causes the

following dialog box to appear. For the items in the Setting of CNC

system tab in the box, specify the configuration of the target CNC

system prior to creating a custom screen. If the CNC system has a

without touch panel display unit, the dialog box lets you specify also

the number of soft keys, focus color, the type of a key to be used to

call a data input pop-up screen for controls with input.

CNC system:

Select the model of the target CNC system from the following:

Series 30i/31i/32i-MODELA

Series 16i/18i/21i-MODEL-A/B

Power Mate i-MODEL D

Power Mate i-MODEL H
