FANUC Picture Operators manual Page 68

Operators manual
2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01
- 54 -
OK Button
To save the parameters specified on the [FP-PARAMETER
SETTING] screen and then exit the screen, click the OK button.
Cancel button
To clear the parameters specified on the [FP-PARAMETER
SETTING] screen and then exit the screen, click the [Cancel]
button.
Explain button

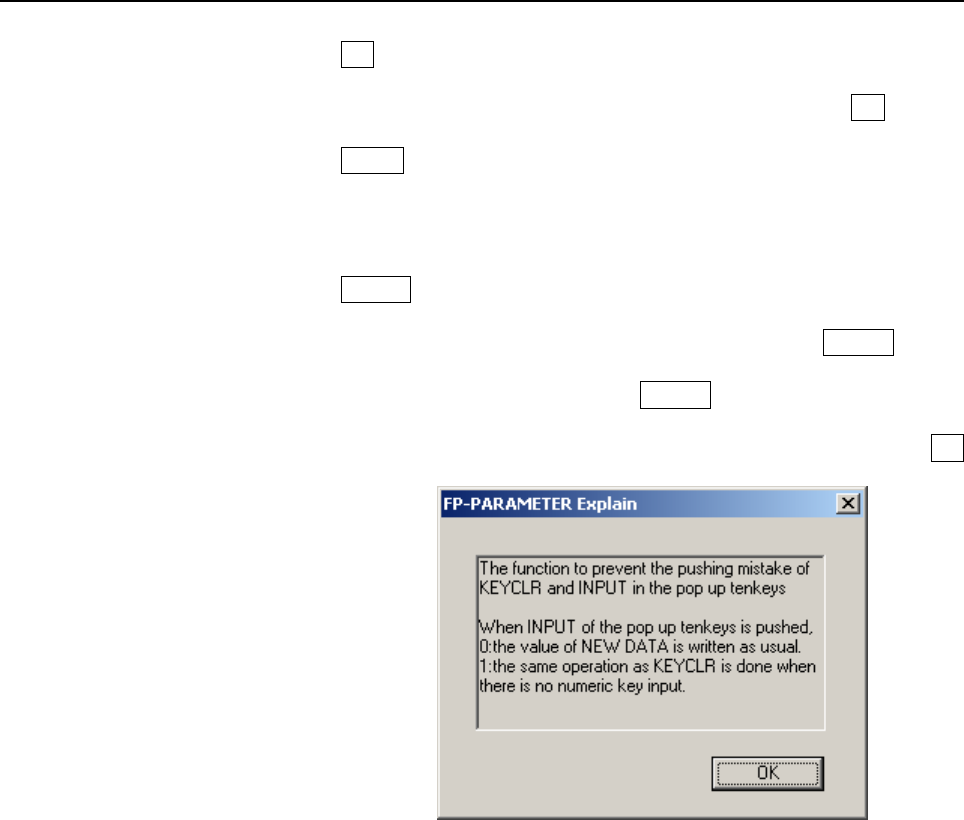

To display the [FP-PARAMETER Explain] dialog box for the
parameter which the cursor points to, click the Explain button.
To see a description of another parameter, move the cursor to the
parameter and then click the Explain button.
To close the [FP-PARAMETER Explain] dialog box, click the OK
button.
Previous page
Next page
