2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 44 -

2.2.9.4 Option function details setting

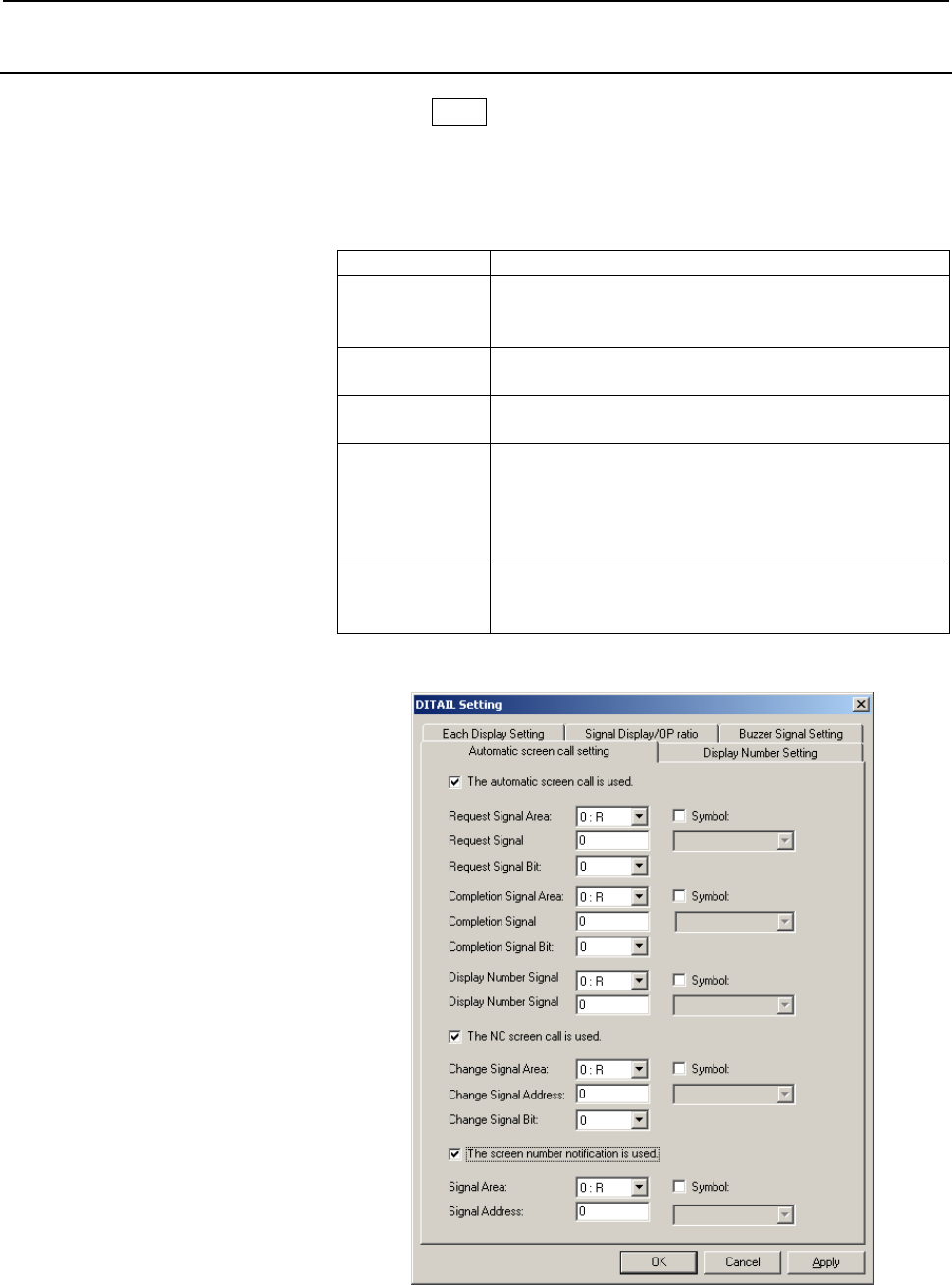

Click the Detail button to display the following dialog box. This

dialog box is used to specify the various settings for the function for

automatically calling screens from the PMC and the function for

reporting the number of the screen currently displayed on the

operator’s panel.

Tab title Function explanation

Automatic

screen call

setting

The interface area to do “Automatic screen call from

PMC” and “Displayed screen number notification” is set.

Display Number

Setting

The screen number to do “Automatic screen call from

PMC” and “Displayed screen number notification” is set.

Each Display

Setting

Free of the memory is set to the screen which cannot be

set by the screen structure definition control.

Signal

display/OP ratio

Signal information set in the button control and the lamp

control can be confirmed on CNC. And, the operation

ratio can be changed from PMC at time related to the

custom screen and time related to CNC executed by the

background.

Buzzer Number

Setting

When the custom screen is displayed, the touch

operation sound of the touch panel can be output to the

PMC area signal.

(1) Automatic screen call setting
