B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 155 -

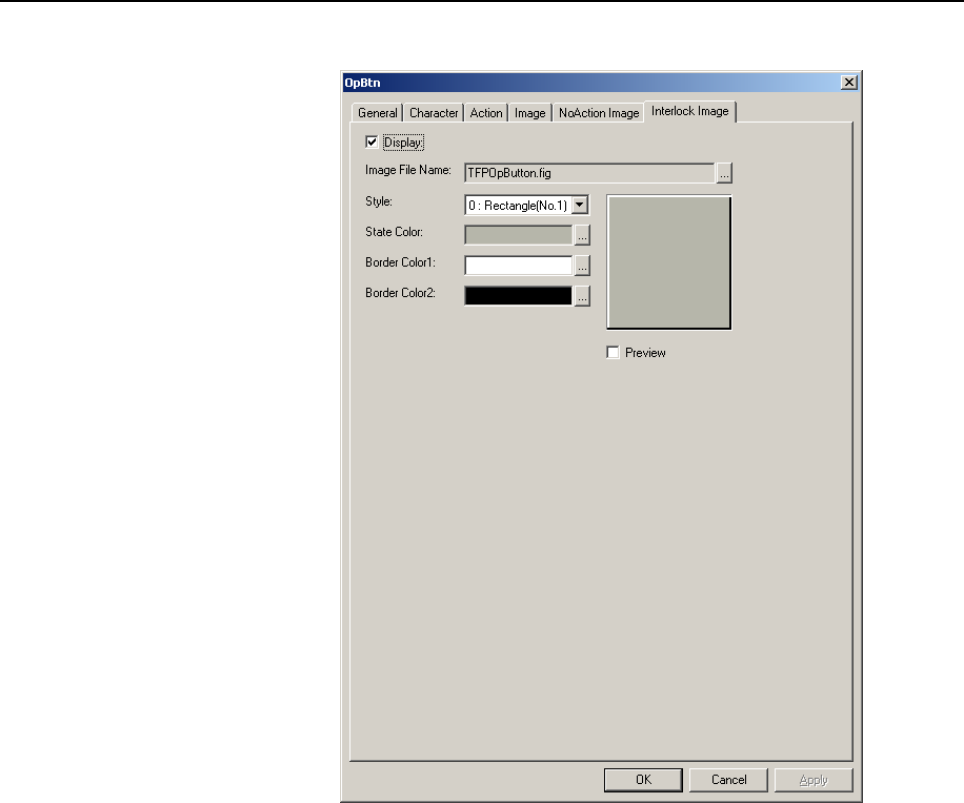

- Interlock Image

This tab is valid when [Interlock1] on the [Action] tab is checked.

Display:

Check this check box to change the style indication of an

interlocked button.

When [Interlock Signal] on the [Action] tab is set to ON, the

function of the bordered button control can be disabled and the

button style can be switched to the one that indicates the

interlocking state.

[Interlock 1] is used as the interlock signal.

When this check box is checked, the following boxes can be set.

Image File Name:

This box can be used to select the FIG file that contains the

embedded plug styles used when the bordered button control is

in the stop state.

Style:

Select the type of the button styles registered in the file specified

in [Image File Name].

State Color:

Select the color of the indicator lamp section.

Border Color1:

Select the color of the upper and left ends of the button.
