2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 60 -

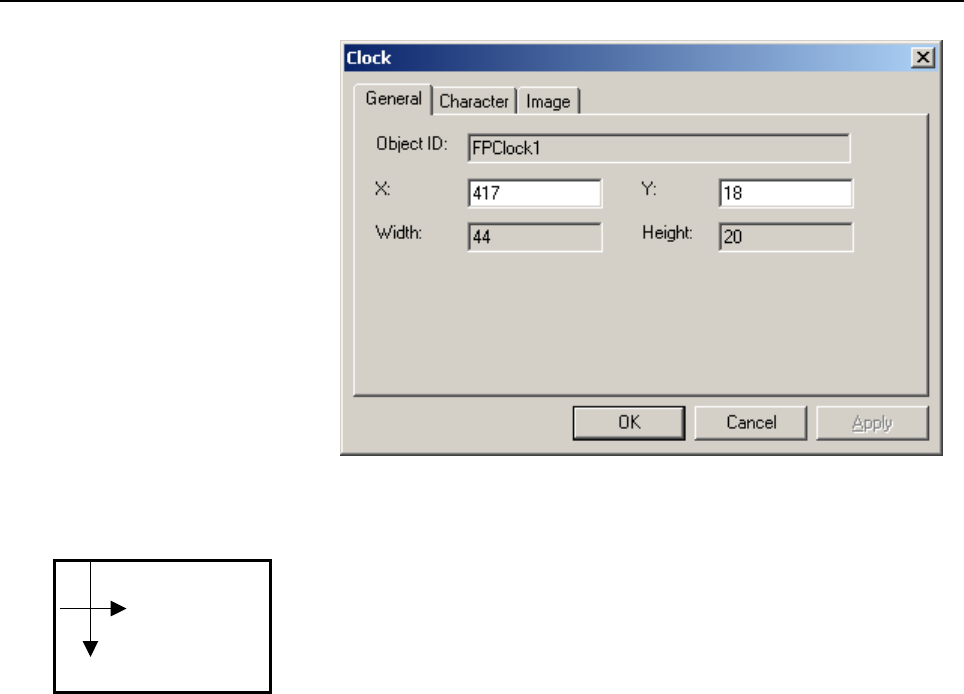

Coordinate specification

A position on the screen is represented by two-dimensional

coordinates (X,Y) with the upper-left corner of the screen set as the

origin (0,0). (See the figure at left.) The following indicates the

specifiable ranges:

The display unit resolution:For VGA

(0,0) ≤ coordinates (X,Y) ≤ (639,479)

(1,1) ≤ (width,height) ≤ (639,479)

The display unit resolution:For XGA

(0,0) ≤ coordinates (X,Y) ≤ (1023,767)

(1,1) ≤ (width,height) ≤ (1023,767)

[X] and [Y] on the General tab of the Property Pages of each control

represent a control position on the screen. Precisely, [X] and [Y]

specify the coordinates of the upper-left corner of the rectangle

defining the outside figure of a control. [Width] and [Height] represent

the width and height of a control, respectively.

The position and size of a control can be modified using the mouse on

the editing screen. The position and size of a control can also be

modified by updating the coordinates, and width and height values.

If the properties specifying coordinates and width and height values

do not satisfy the condition described below, screen data is not output

at the time of memory card file generation. If a control extending to

the right edge or bottom is not displayed on the touch panel, check the

coordinate-related properties.

VGA: (1,1)≤(X coordinate+width, Y coordinate+height)≤(639,479)

XGA: (1,1)≤(X coordinate+width, Y coordinate+height)≤(1023,767)

X coordinate

Y coordinate

(

)
