B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 63 -

Editing multi-language display captions

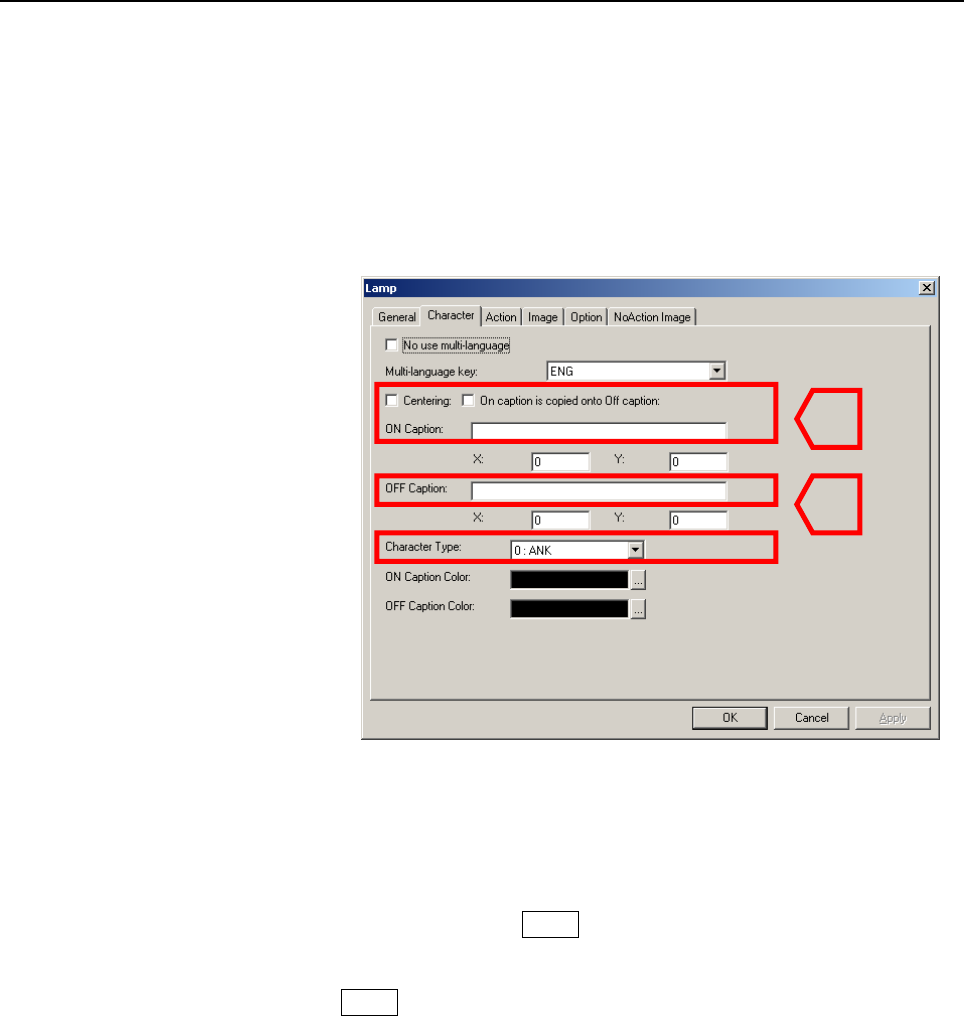

The following explains how to edit the On and Off captions of buttons

and lamps in each language.

The setting operation explained below is possible if The

Multi-Language display function is used. is checked in the [Setting of

project] tab. As an example, the explanation uses the caption-setting

property in the Action tab in the property dialog box of a lamp control.

The caption properties of other controls can also be set in each

language with the same procedure.

If the screen of a project created on a version of FANUC PICTURE

into which the multi-language display function is not incorporated is

to be converted into a multi-language display screen, the previously

set captions will be automatically set as those for the language of the

first multi-language key (item number: 01) additionally registered by

performing a multi-language editing operation on the caption

property; click the Apply button in the Character tab. During this

editing operation, for a control that does not require multi-language

switching, check the [No use multi-language] check box and click the

Apply button.

Properties related to multi-language input

No use multi-language :

Check this item for a control that does not require multi-language

display switching, as in a case in which the caption-related

property may be the same characters regardless of the display

language.

Multi-language key :

Select the multi-language key to be displayed or input for the

caption-related property.

<1>

<2>
