Q : Pattern continue
Selection whether to continue entering another hole pattern.
1: End
2: Continue
Omit point :
To designate the point to be omitted, input the hole drilling sequence
number including its
points.
Each address to the number is as follows.
Omit point – 1 : B
Omit point – 2 : C
Omit point – 3 : D
Omit point – 4 : E

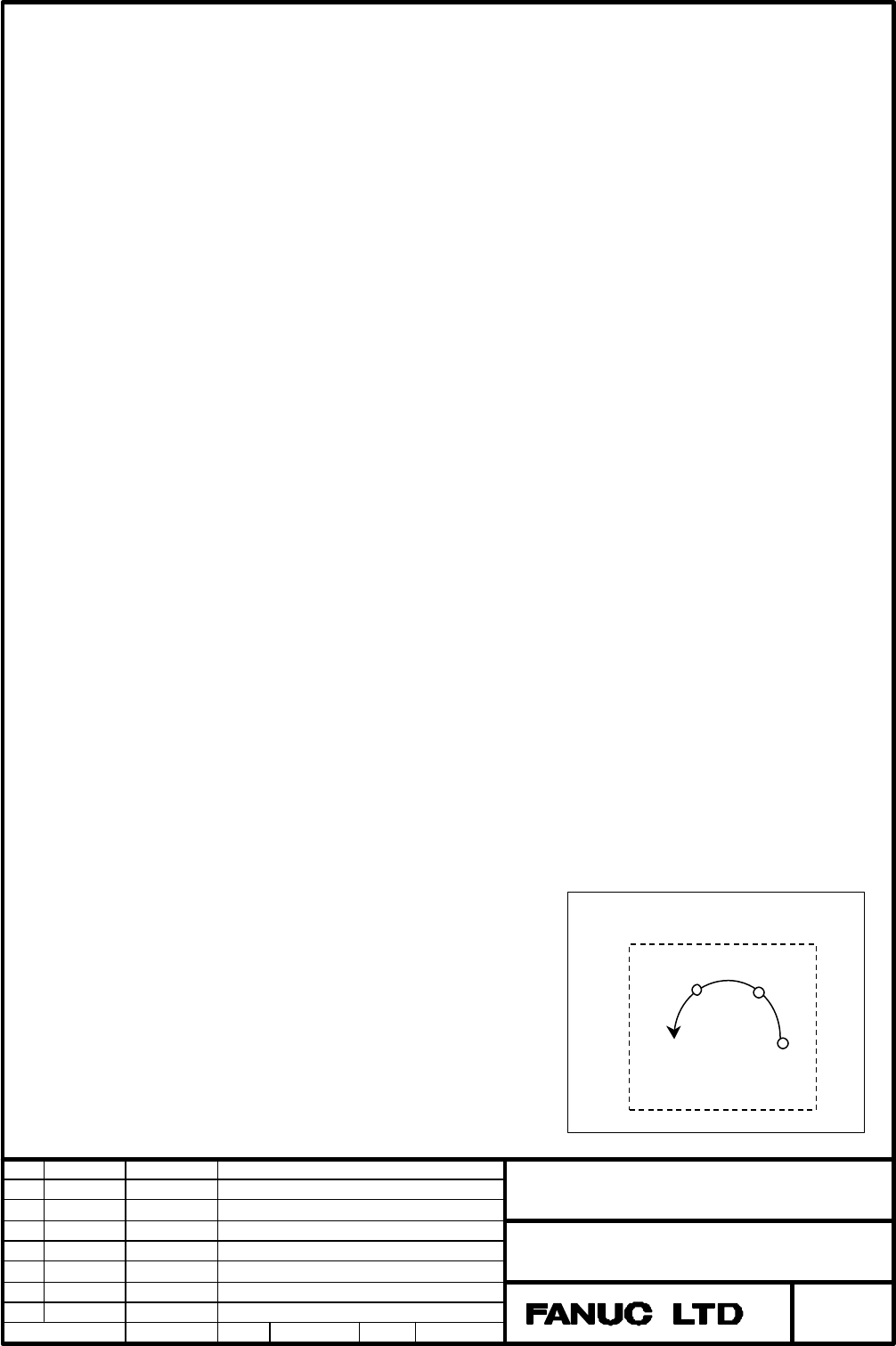

In the case of Different space arc :
X : Center point X
X coordinate of the center of the circle.
Y : Center point Y
Y coordinate of the center of the circle.
R : Radius
The radius of the circle.
A : Start angle
The angle between the segment from the center of the circle to starting point and the
X axis. If there in no input, 0 is regarded and the starting point is considered to be on
the X axis.
Pitch space :
The angle between the segment from the center of the circle to each point. Input the
angles one by one starting from angle 1. A maximum of 11 points can be specified.
Each address to the pitch space is as follows.
Pitch space – 1 : B Pitch space – 8 : J
Pitch space – 2 : C Pitch space – 9 : K
Pitch space – 3 : D Pitch space – 10 : U
Pitch space – 4 : E
Pitch space – 5 : F
Pitch space – 6 : H
Pitch space – 7 : I
Hole
Machining
Sequence
ARC
