Embedded macro for milling Supplement to Manual Page 19

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
19 / 59
b) In the case of finish cutting
1. Rapid traverse up to the starting point (A).
2. Rapid traverse along the Z axis up to the point equal to END POINT Z.
3. Cutting feed to the other side (B) in the X axis (U direction).
4. Rapid traverse in the Y axis (V direction) to next starting point (C) according to
CUTTING WITDH.
5. Cutting feed to the other side (D) in the X axis (U direction).
6. Rapid traverse in the Y axis (V direction) to next starting point according to CUTTING
WITDH.
7. 3.- 6. is repeated up to the ending point (D).
8. Rise along the Z axis in rapid traverse by an amount of CLEARANCE.

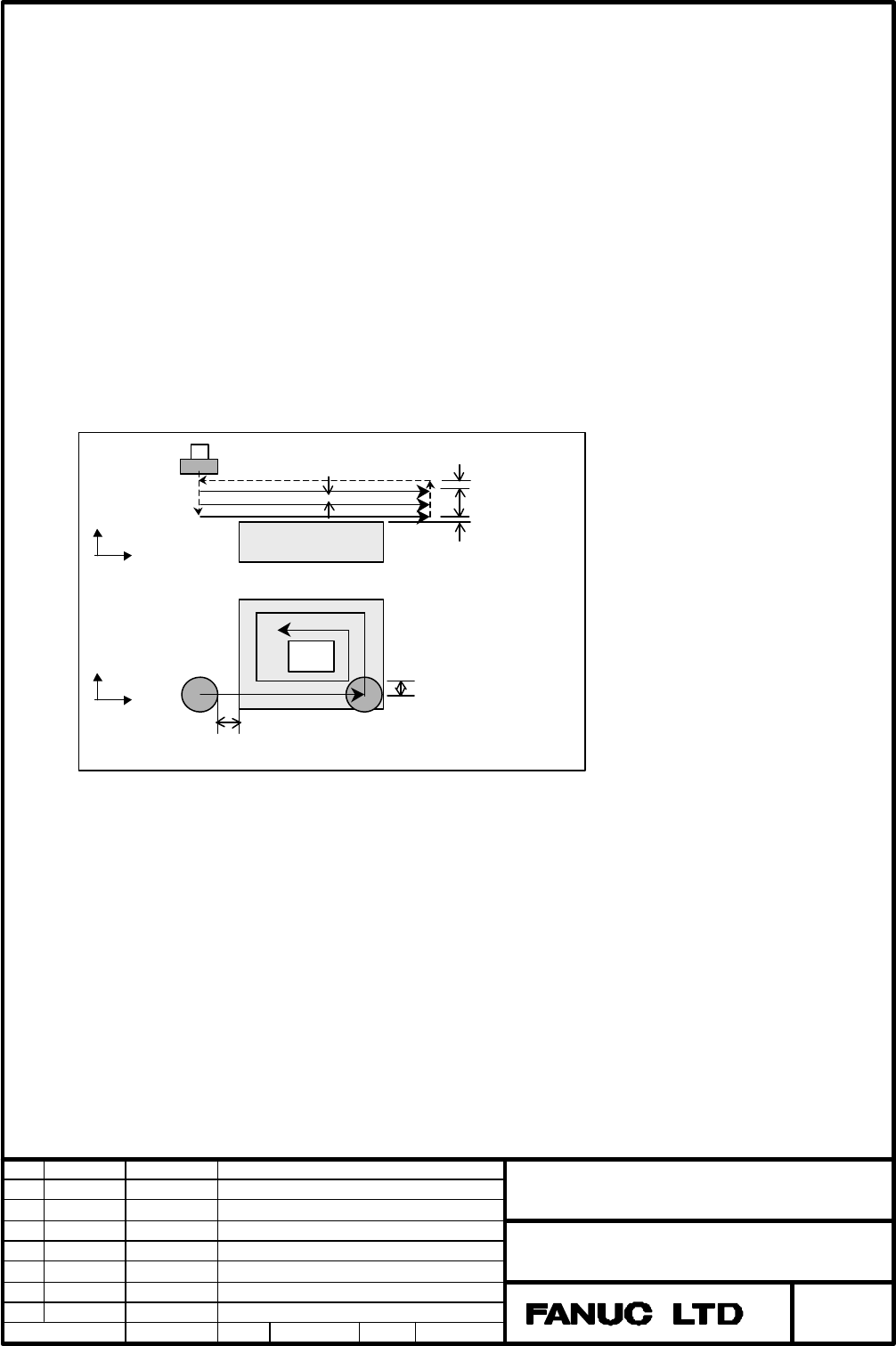

Ring - direction
a) In the case of rough cutting
1. Rapid traverse up to the starting point (A).
2. Rapid traverse along the Z axis up to the point equal to
(END POINT Z + REMOVAL DEPTH – REMOVAL PITCH)
3. Cut spirally and finally move in cutting feed by an amount equal to ESCAPE GAP.
4. Rise along the Z axis in rapid traverse by an amount equal to CLEARANCE.
5. Repeat steps 1. to 4. advancing in the –Z direction, pitch by pitch, up to the point
(END POINT Z + FINISHING ALW.).
6. Rise along the Z axis up to the point
(END POINT Z + FINISHING ALW. + CLEARANCE).
Pitch
X
Z
X
Y
Clearance
Depth
Finish ALW.
Cutting Width
Approach Gap
A
