FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
38 / 59
A : Incline angle
The angle between the U side and X axis, when the work is inclined with respect to
the X axis. It is considered to be 0 if not input.
M : Approach gap
The gap between the tool edge in the machining start point and the workpiece edge.
If there is no input, 5mm is regarded.
N : Escape gap
The gap between the tool edge when the tool moves away from the workpiece after
cutting and the workpiece edge. If there is no input, 5mm is regarded.
The following table shows addresses used in arguments in each machining process.
G223 T Z S I D B J H I D J H F X Y U C W A M N
Rough # # # # # # # # _ _ _ _ # # # # & & & & &
Bottom finish # # # # # # _ # _ _ _ _ # # # # & & & & &
Side finish # # _ _ _ # # # _ _ _ _ # # # # & & & & &
Chamfer # # _ _ _ # _ _ # # # # # # # # & & & & &
# : Specify necessarily
& : Specify. If there is no input, default data is specified.
_ : Do not specify.

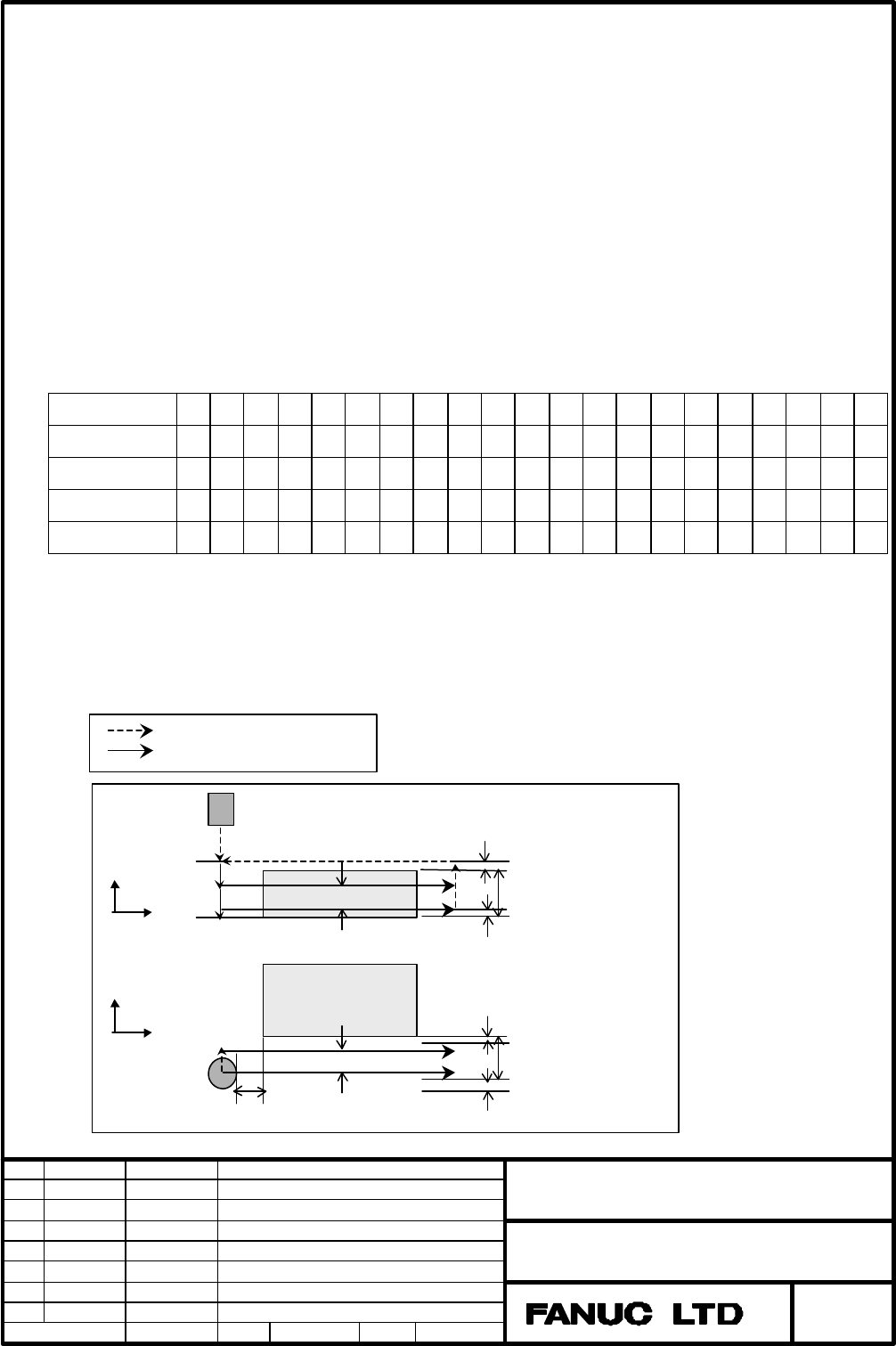

Movements :
Feed Traverse
(
G01)
Rapid Traverse
(
G00)
Clearanc
e
Bottom Removal
Bottom Finish
Side Pitch
Bottom
Pitch
Side Removal
Side Finish
Approach/Escape Gap
A
Point R
X
Z
X
Y
Clearance
