7. Move away the amount (CLEARANCE) along the Z axis.
8. Rapid traverse back to the starting point (B).
9. 2.-8. are repeated up to the point (END POINT Z).
10. Rapid traverse along Z axis up to point R
(END POINT Z + BOTTOM REMOVAL + CLEARANCE).
d) In the case of chamfering
1. Rapid traverse up to the starting point (B).
2. Rapid traverse along the Z axis up to the cutting point.
(Cutting point : It is calculated by END POINT Z, BOTTOM
REMOVAL, CHAMFER REMOVAL, TOOL SMALL DIA.
CHAMFER ANGLE, TOOL OUT DEPTH, CLEARANCE)
3. Cut into the workpiece following a circular path.
4. Cutting of the chamfering allowance (CHAMFER REMOVAL).
5. Move away from the workpiece following a circular path after cutting.
6. Rapid traverse along Z axis up to point R
(END POINT Z + BOTTOM REMOVAL + CLEARANCE).

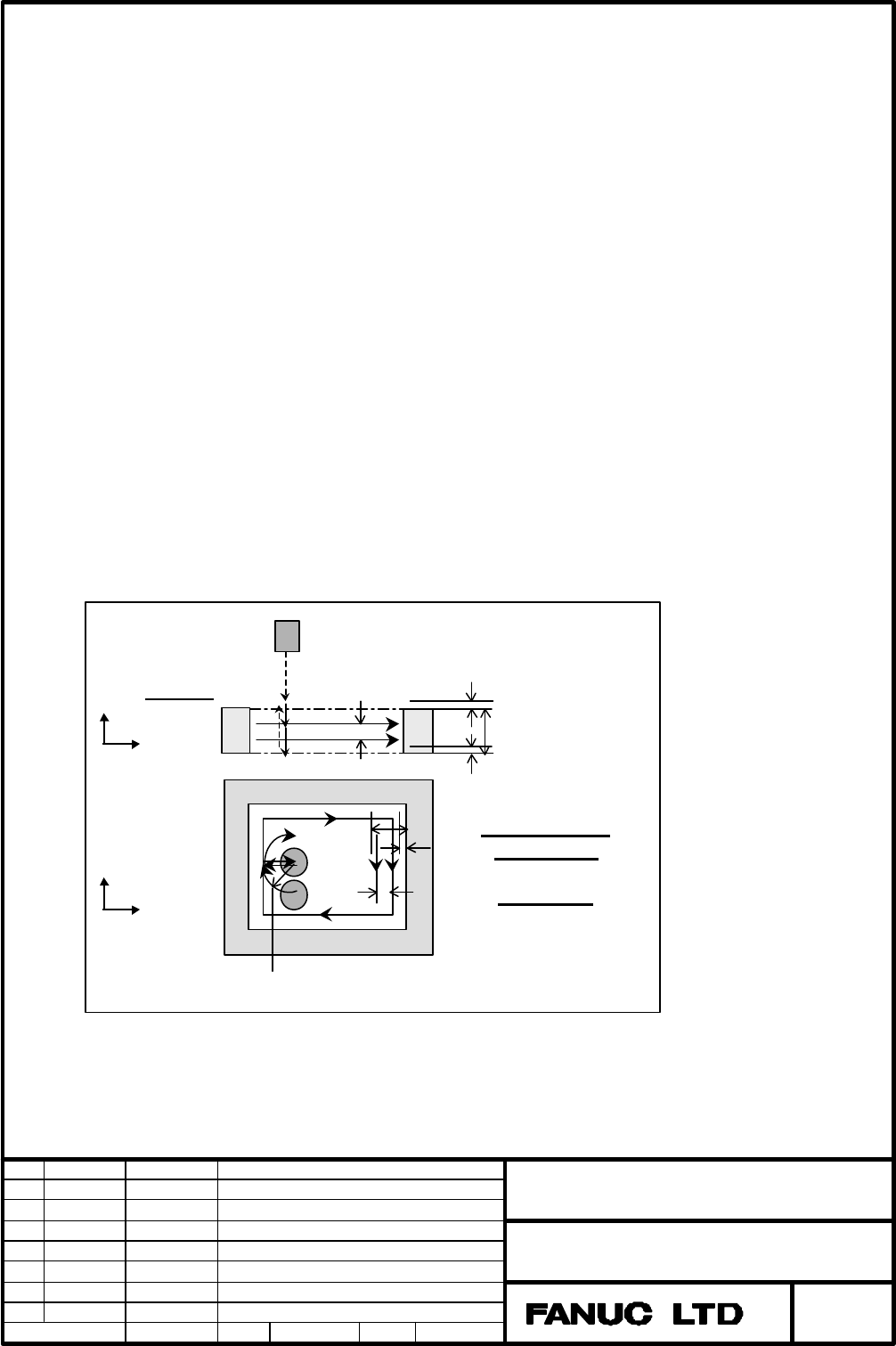

Inside
Movements :
Except for cutting inside, the basic movements are similar to those of the Out-side cutting
X
X
Z
Y
Clearance
Bottom Removal
Bottom Finish
Side Pitch
Bottom Pitch
Side Removal
Side Finish
Approach/Escape Gap
A
B
Point R
