2.3.3 Track side (G222)
This is a menu for cutting the track shape side.
Create ISO code program in the following form.
G222 P Z S I D B J H F E • • • ;
T : Machining process
1: Roughing
2: Bottom finishing
3: Side finishing
4: Chamfering
Z : End point Z
Z coordinate of the final machined surface
S : Side removal
The side machining allowance.
I : Side pitch
The side machining allowance of one pass for rough cutting. Rough cutting is done in
one pass if not input.
D : Side finish
The side machining allowance of the side finish cutting. This is cut in one pass.
Side finish cutting is not done if not input.
B : Bottom removal
The machining allowance in the Z direction of the cutting surface
J : Bottom pitch
The machining allowance of one pass for rough cutting in the Z direction.
Rough cutting is done in one pass if not input.
Z
H
B
J
C
I
I
D
S
X
Z

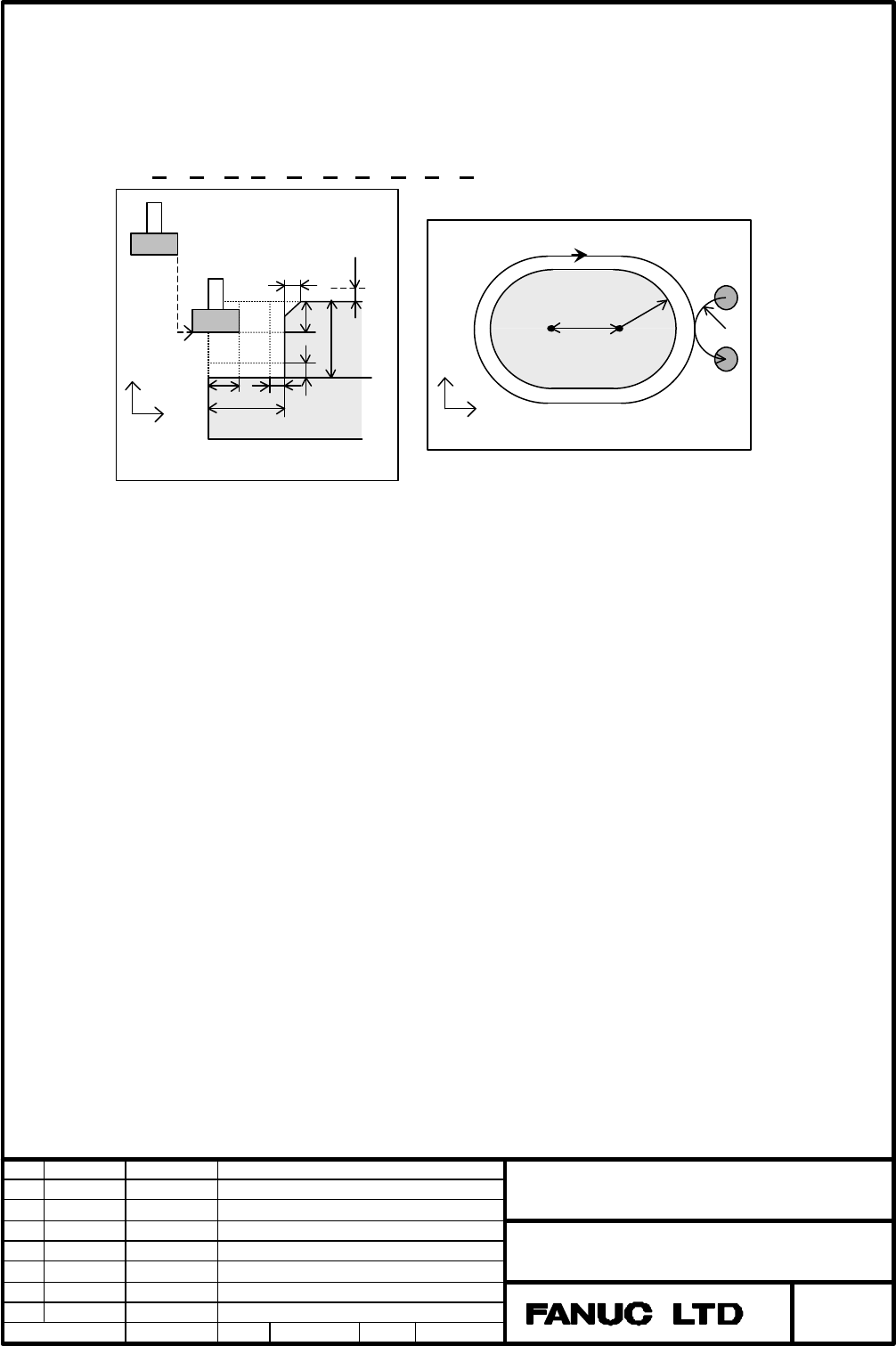

Side cutting : Z-X plane
(X, Y)
R
U
K
X
Y
Track side
