  2. Embedded macro for milling

Embedded macro for milling Supplement to Manual Page 32

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
32 / 59
K : Approach gap
The gap between the tool edge in the cutting feed start point and the work.
If there is no input, 5mm is regarded.
K : Approach / escape
The radius of approach or escape. The movement is performed as a quarter arc.
It is calculated automatically if not input.
N : Start point
The starting position of the machining (1, 2).
If there is no input, 1 is regarded.
The following table shows addresses used in arguments in each machining process.
G221 T Z S I D B J H I D J H M F E X Y R
Rough # # # # # # # # _ _ _ _ # # # # # #
Bottom finish # # # # # # _ # _ _ _ _ # # # # # #
Side finish # # _ _ _ # # # _ _ _ _ # # # # # #
Chamfer # # _ _ _ # _ _ # # # # # # # # # #
G221 C W K K N
Rough & & & _ &
Bottom finish & & & _ &
Side finish & & _ & &
Chamfer & & _ & &
# : Specify necessarily
& : Specify. If there is no input, default data is specified.
_ : Do not specify.

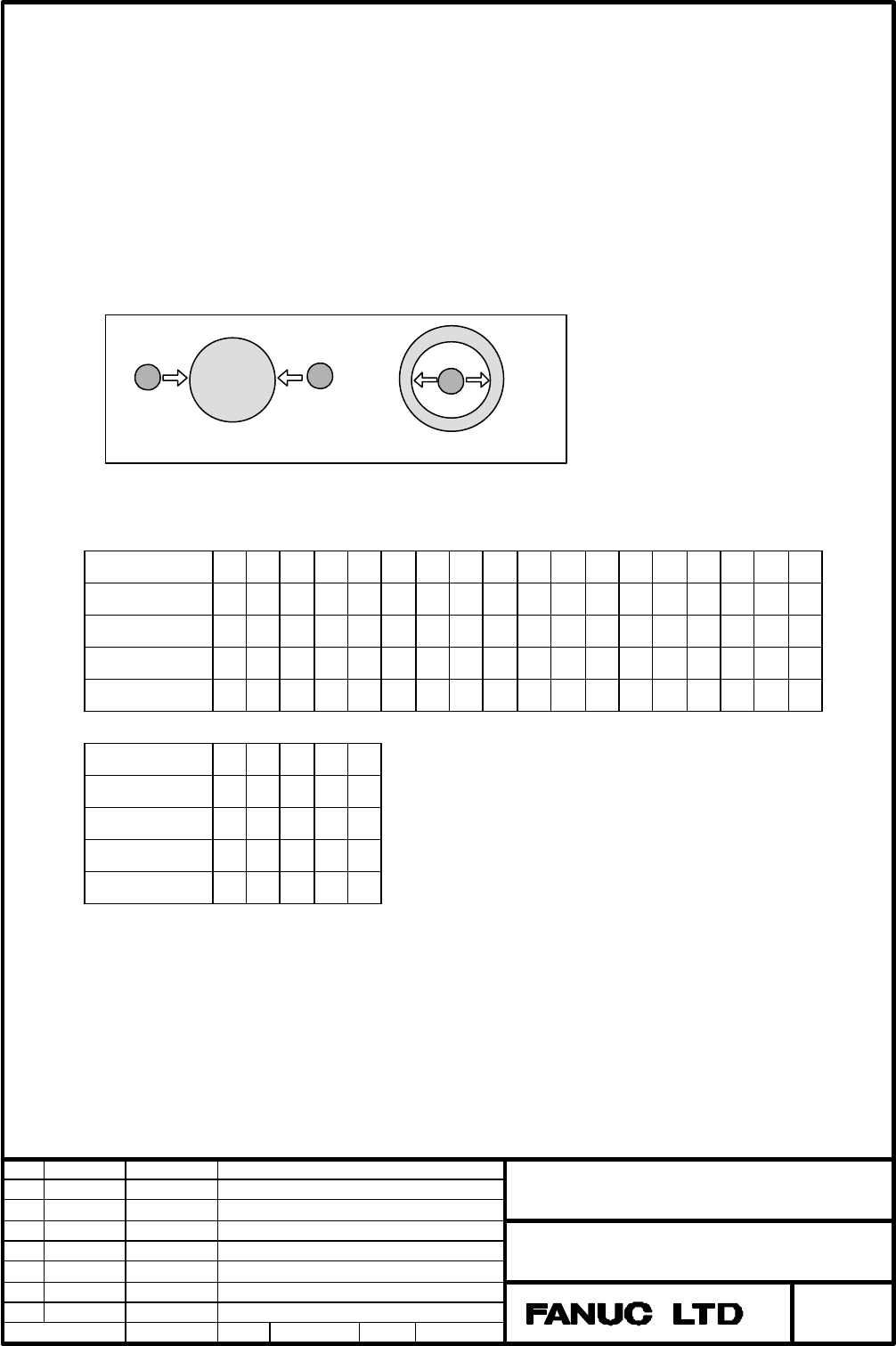

Movements :
Except for the shape of the circle, the basic movements are similar to those of Square side.
[ 1 ]
[ 2 ]
Out-side
In-side
[ 1 ]
[ 2 ]
