Embedded macro for milling Supplement to Manual Page 22

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
22 / 59

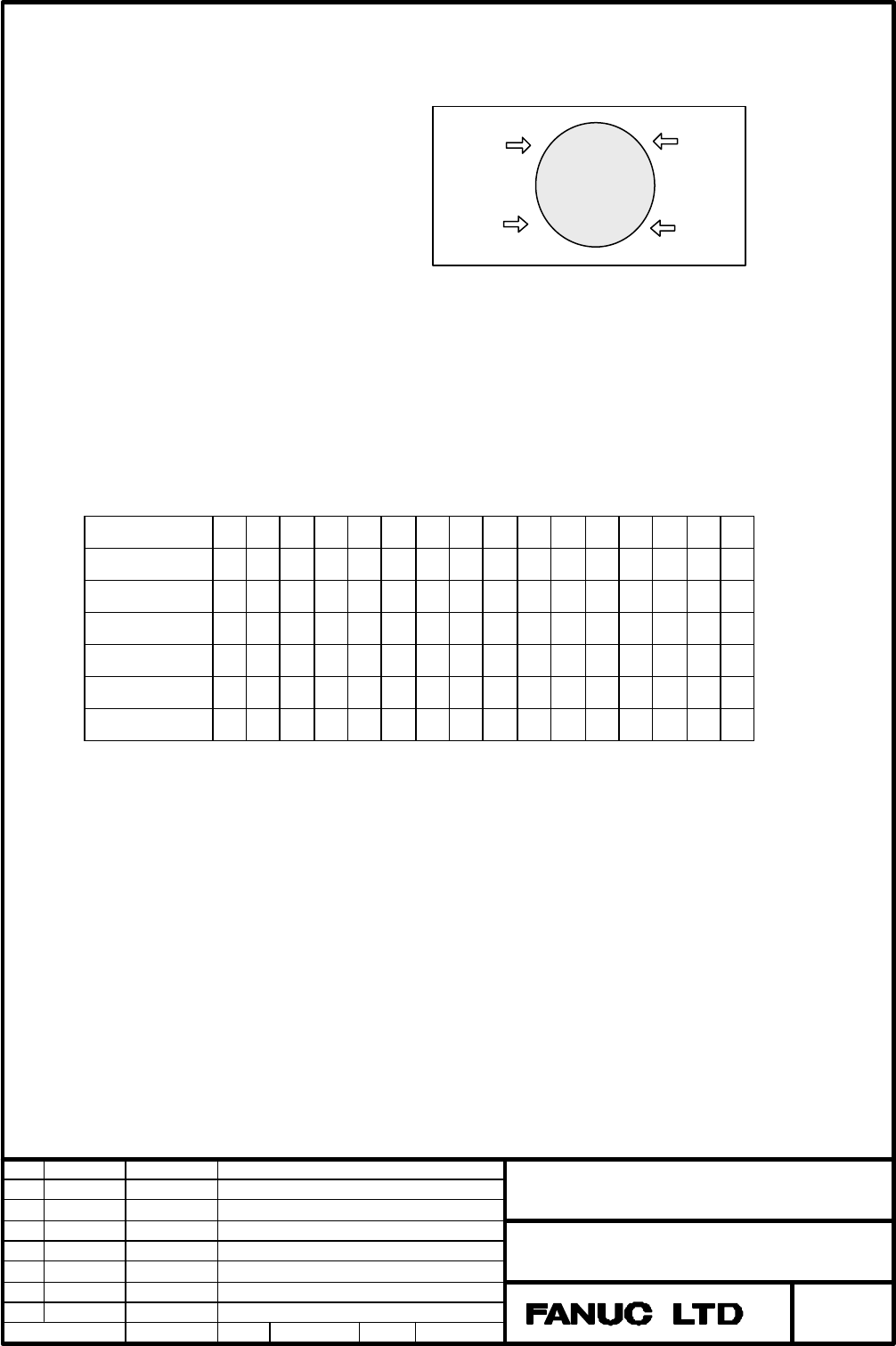

E : Start point
The starting position of the machining (1, 2, 3, 4).
If there is no input, 1 is regarded.
M : Approach gap
The gap between the tool edge in the cutting feed start point and the work.
If there is no input, 5mm is regarded.
N : Escape gap
The gap between the tool edge and the workpiece when the tool moves away the
work. If there is no input, 5mm is regarded.
The following table shows addresses used in arguments in each machining process.
G211 T Z B J H F C X Y R Q L W E M N
Rough (Uni) # # # & & # # # # # _ & # & & &
Finish (Uni) # # _ _ _ # # # # # _ & # & & &
Rough (Bi) # # # & & # # # # # _ & # & & &
Finish (Bi) # # _ _ _ # # # # # _ & # & & &
Rough (Ring) # # # & & # # # # # # & # & & &
Finish (Ring) # # _ _ _ # # # # # # & # & & &
# : Specify necessarily
& : Specify. If there is no input, default data is specified.
_ : Do not specify.
Movements :
Except for the shape of the circle surface, the machining movements are the same
one for the square surface.
[ 1 ]
[ 2 ]
[ 4 ]
[ 3 ]
