Embedded macro for milling Supplement to Manual Page 23

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
23 / 59

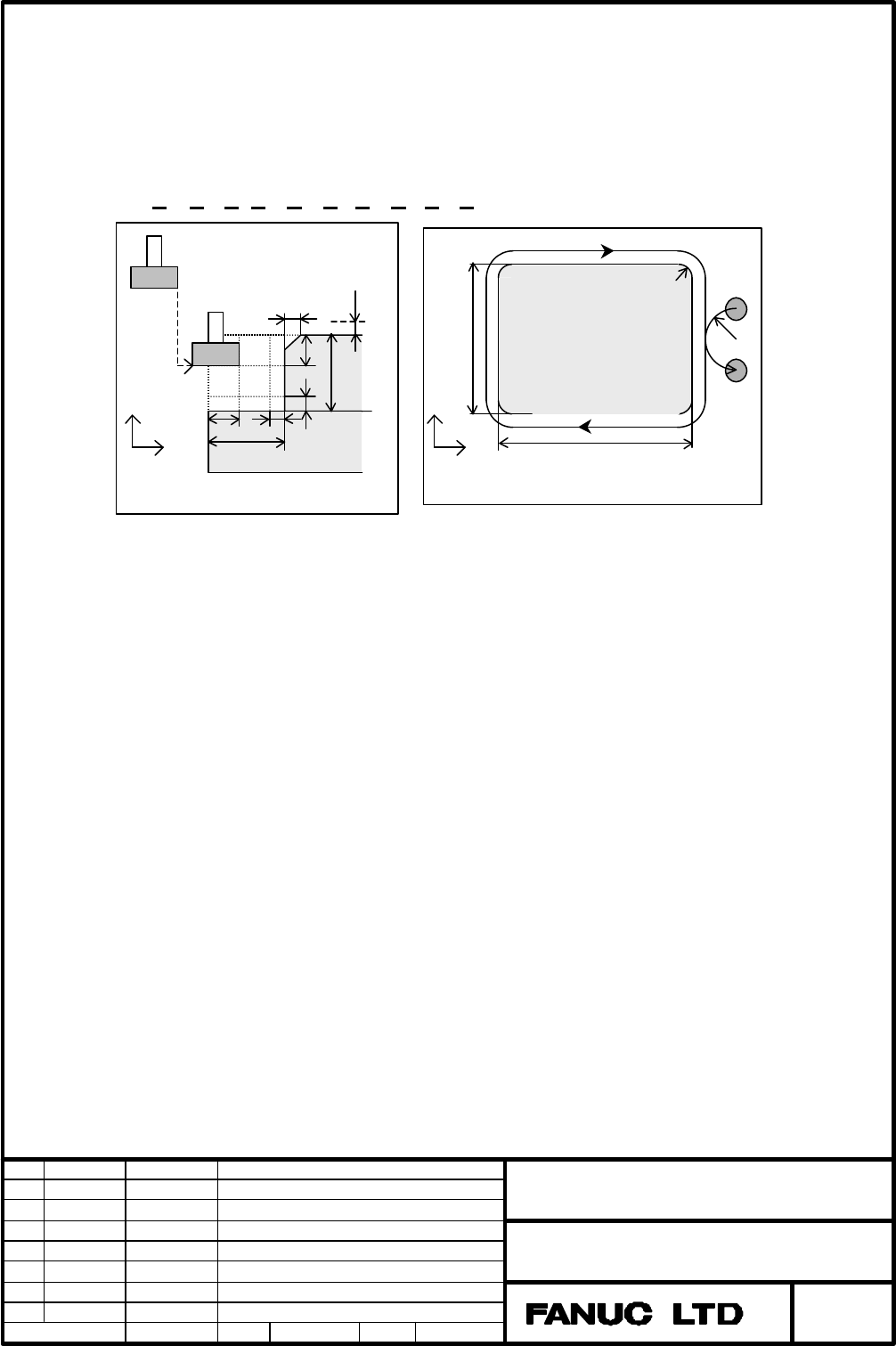

2.3 Side cutting
2.3.1 Square side (G220)
This is a menu for cutting the square shape side.
Create ISO code program in the following form.
G220 P Z S I D B J H F E • • • •;
T : Machining process
1: Roughing
2: Bottom finishing
3: Side finishing
4: Chamfering
Z : End point Z
Z coordinate of the final machined surface
S : Side removal
The side machining allowance.
I : Side pitch
The side machining allowance of one pass for rough cutting. Rough cutting is done in
one pass if not input.
D : Side finish
The side machining allowance of the side finish cutting. This is cut in one pass.
Side finish cutting is not done if not input.
B : Bottom removal
The machining allowance in the Z direction of the cutting surface
J : Bottom pitch
The machining allowance of one pass for rough cutting in the Z direction.
Rough cutting is done in one pass if not input.
H : Bottom finish
U
V
(X, Y)
R
K
X
Y
Square side
Z
H
B
J
C
I
I
D
S
X
Z
Side
cutting : Z-X plane
