Embedded macro for milling Supplement to Manual Page 40

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
40 / 59
7. 3.-6. are repeated up to the point (END POINT Z).
8. Rapid traverse along Z axis up to point R
(END POINT Z + BOTTOM REMOVAL + CLEARANCE).
d) In the case of chamfering
1. Rapid traverse up to the starting point (A).
2. Rapid traverse along the Z axis up to the cutting point.
(Cutting point : It is calculated by END POINT Z, BOTTOM
REMOVAL, CHAMFER REMOVAL, TOOL SMALL DIA.
CHAMFER ANGLE, TOOL OUT DEPTH, CLEARANCE)
3. Cut into the workpiece following a circular path.
4. Cutting of the chamfering allowance (CHAMFER REMOVAL).
5. Move away from the workpiece following a circular path after cutting.
6. Rapid traverse along Z axis up to point R
(END POINT Z + BOTTOM REMOVAL + CLEARANCE).

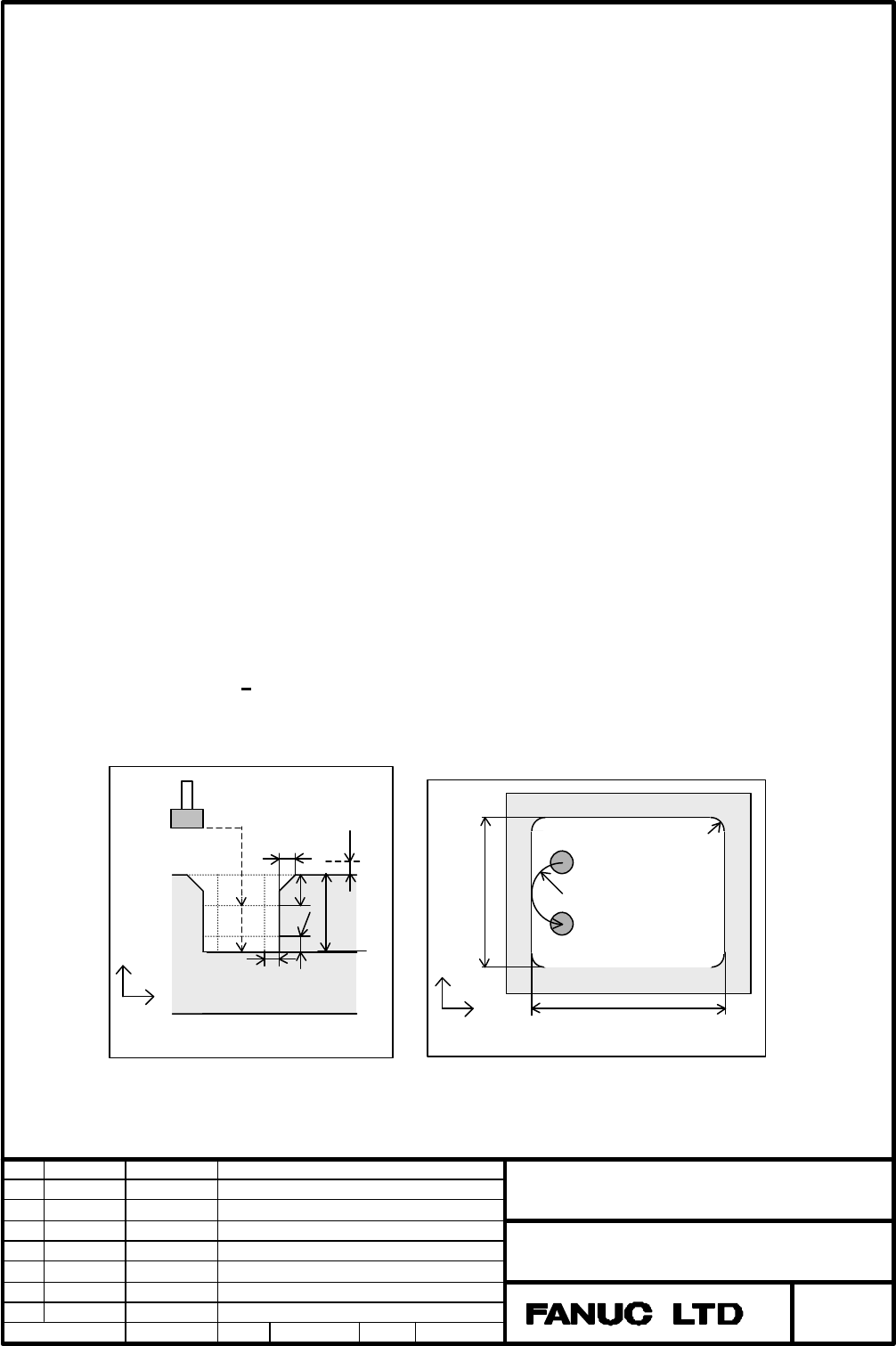

2.4 Pocketing
2.4.1 Square pocket (G230)
This is a menu for pocketing the square shape.
Create ISO code program in the following form.
G230 P_ Z_ B_ J H_ F_ C_ W_ X_ Y_ • • • •;
R
(X, Y)
U
V
K
X
Y
Square pocket
Z
H
B
J
M
C
D
X
Z
Pocketing : Z-X plane
