Embedded macro for milling Supplement to Manual Page 53

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
53 / 59

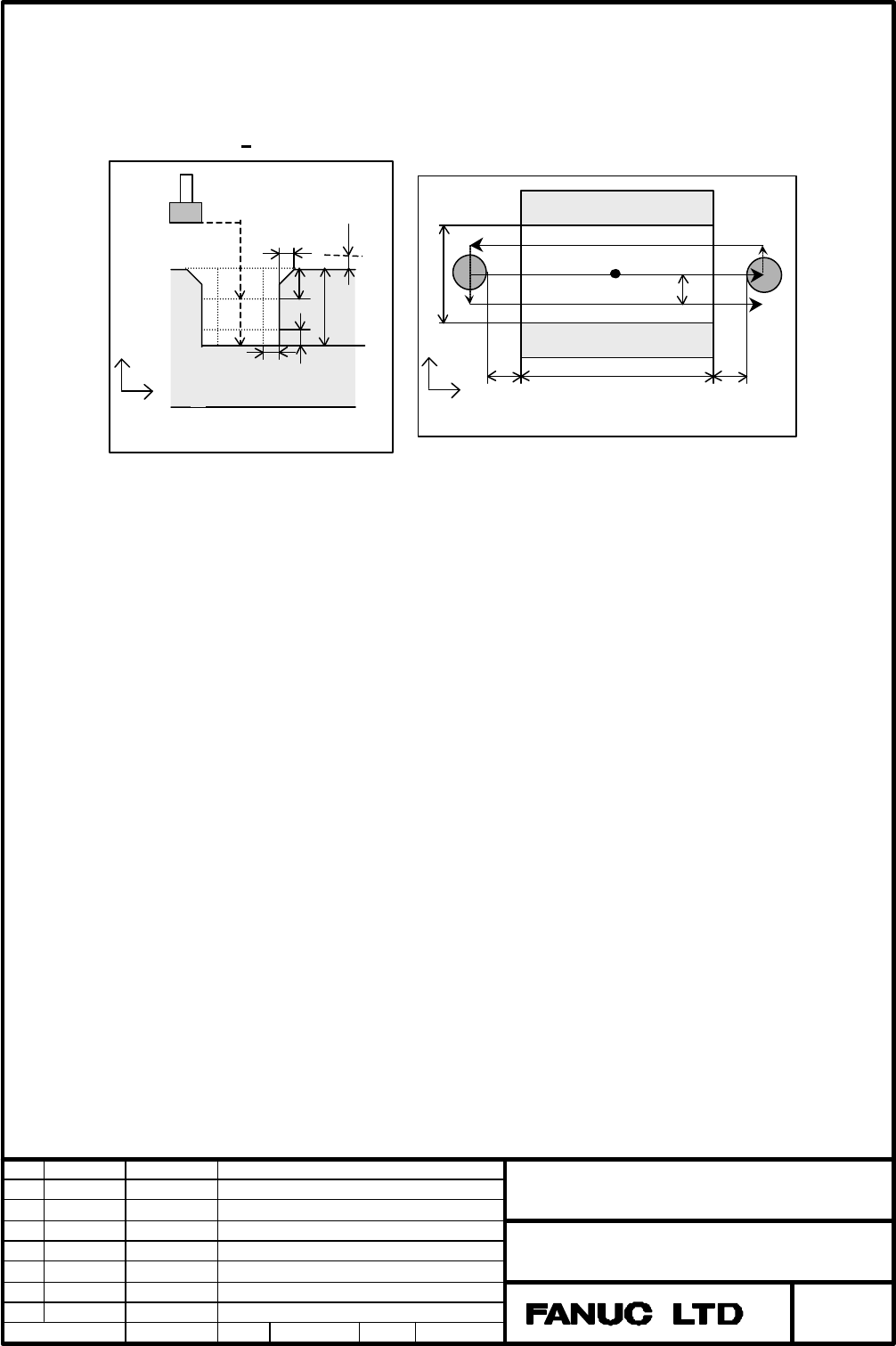

2.4.4 Groove (G233)
This is a menu for machining the linear groove.
Create ISO code program in the following form.
G233 P_ Z_ B_ J H_ F_ C_ W_ X_ Y_ • • • •;
T : Machining process
1: Roughing
2: Bottom finishing
3: Side finishing
4: Chamfering
Z : End point Z
Z coordinate of the final machined surface
B : Removal depth
The depth of the groove.
J : Removal pitch
The machining allowance of one pass for rough cutting in the Z direction.
Rough cutting is done in one pass if not input.
H : Bottom finish
The bottom machining allowance for bottom finish cutting. This is cut in one pass.
Bottom finish cutting is not done if not input.
D : Side finish
The side machining allowance for side finish cutting.
Side finish cutting is not done if not input.
C : Chamfer removal
The amount of the chamfering.
D : Tool small diameter
The small diameter of chamfer tool.
Z
H
B
J
M
C
D
X
Z
Pocketing : Z-X plane
X
Y
Q
K
U
V
(X, Y)
C
Groove
