Embedded macro for milling Supplement to Manual Page 25

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
25 / 59

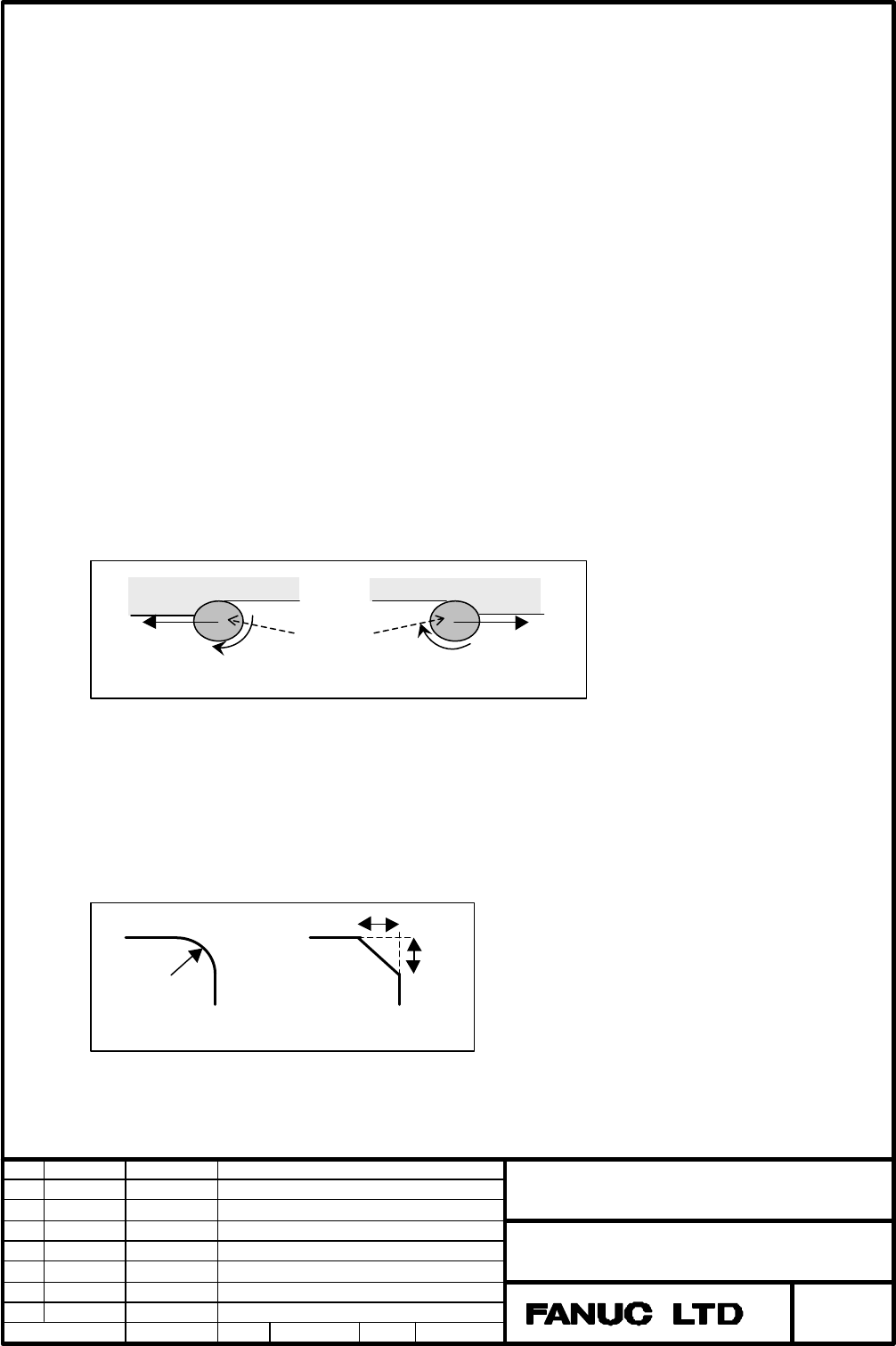

X : Center point X
X coordinate of the center of the square.
Y : Center point Y
Y coordinate of the center of the square.
U : U-length
The horizontal length of the square.
V : V-length
The vertical length of the square.
In the case of Inside, be sure that U > V or U = V.
If not, input Incline angle of detail to 90.
C : Clearance
The amount of clearance for cutting feed in the Z axis at the approach or escape
movement. The default data is 3mm.
W : Cutting direction
1: Down-cut : Rotation of the cutting tool in the forward direction
2: Up-cut : Rotation of the cutting tool in the reverse direction
If there is no input, 1 is regarded.
Q : Corner type
1: Corner R
2: Corner C
If there is no input, 1 is regarded.
R : Corner R / C
The amount of radius or chamfer at a corner.
Down-cut
Up-cut
End-mill
Corner
R
Corner
C
R
C
