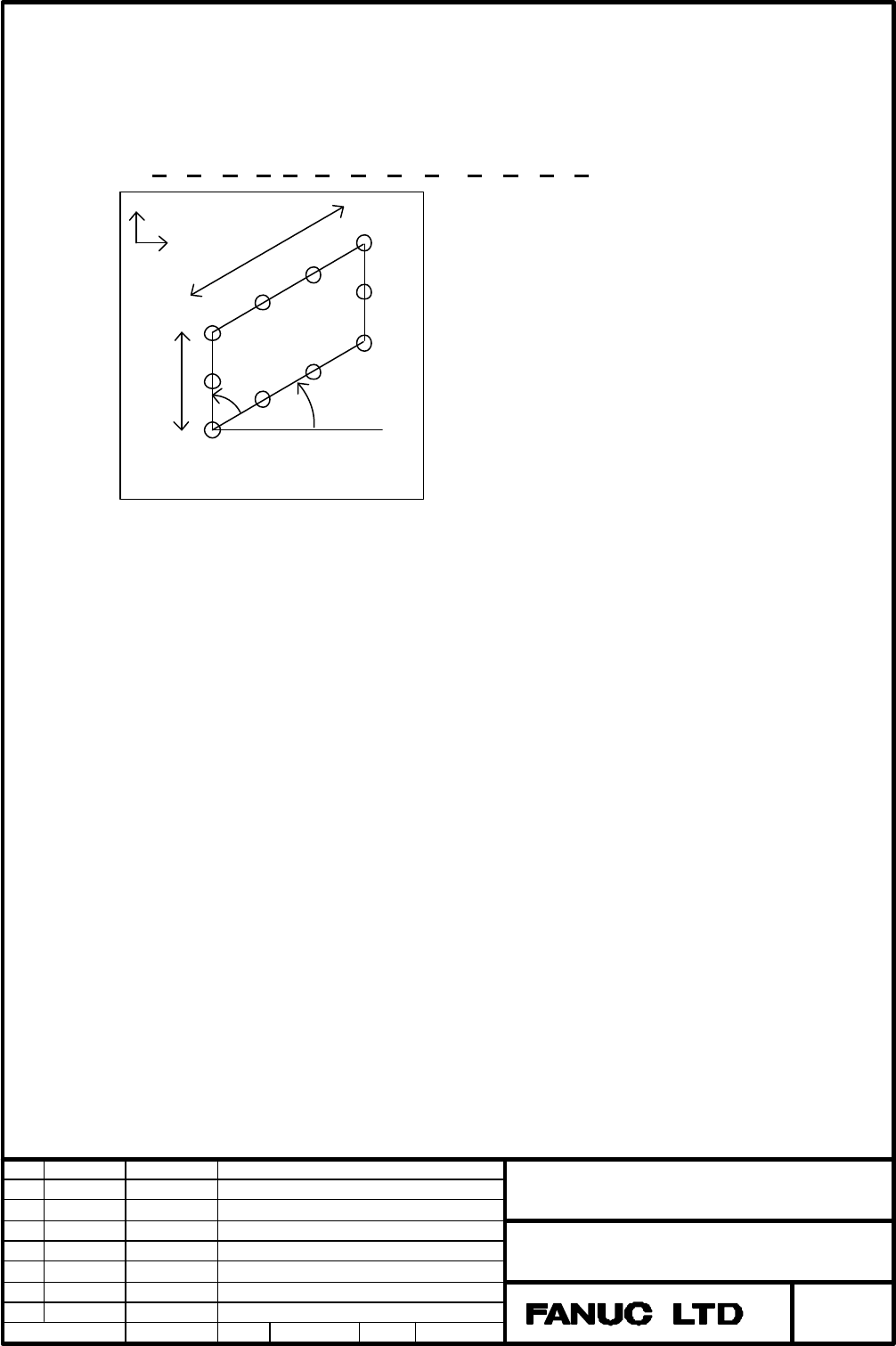

2.1.4 Square (G203)
This is a menu for specifying the holes positions of a square.
Create ISO code program in the following form.
G203 X Y U V I J K R Q (B C D E ) ;
X : Start point X
X coordinate of the position of the hole of the first point.
The first point is at the lower left position of the square.
Y : Start point Y
Y coordinate of the position of the hole of the first point.
The first point is at the lower left position of the square.
U : U – length
The length in the horizontal direction.
V : V – length
The length in the vertical direction
I : U – number
The number of the holes in the horizontal direction.
J : V – number
The number of the holes in the vertical direction
K : X – U angle
The angle between the line in the horizontal direction and the X axis.
It is considered to be 0 if not input.
K
U
V
(X, Y)
I
Square
R
X
Y
