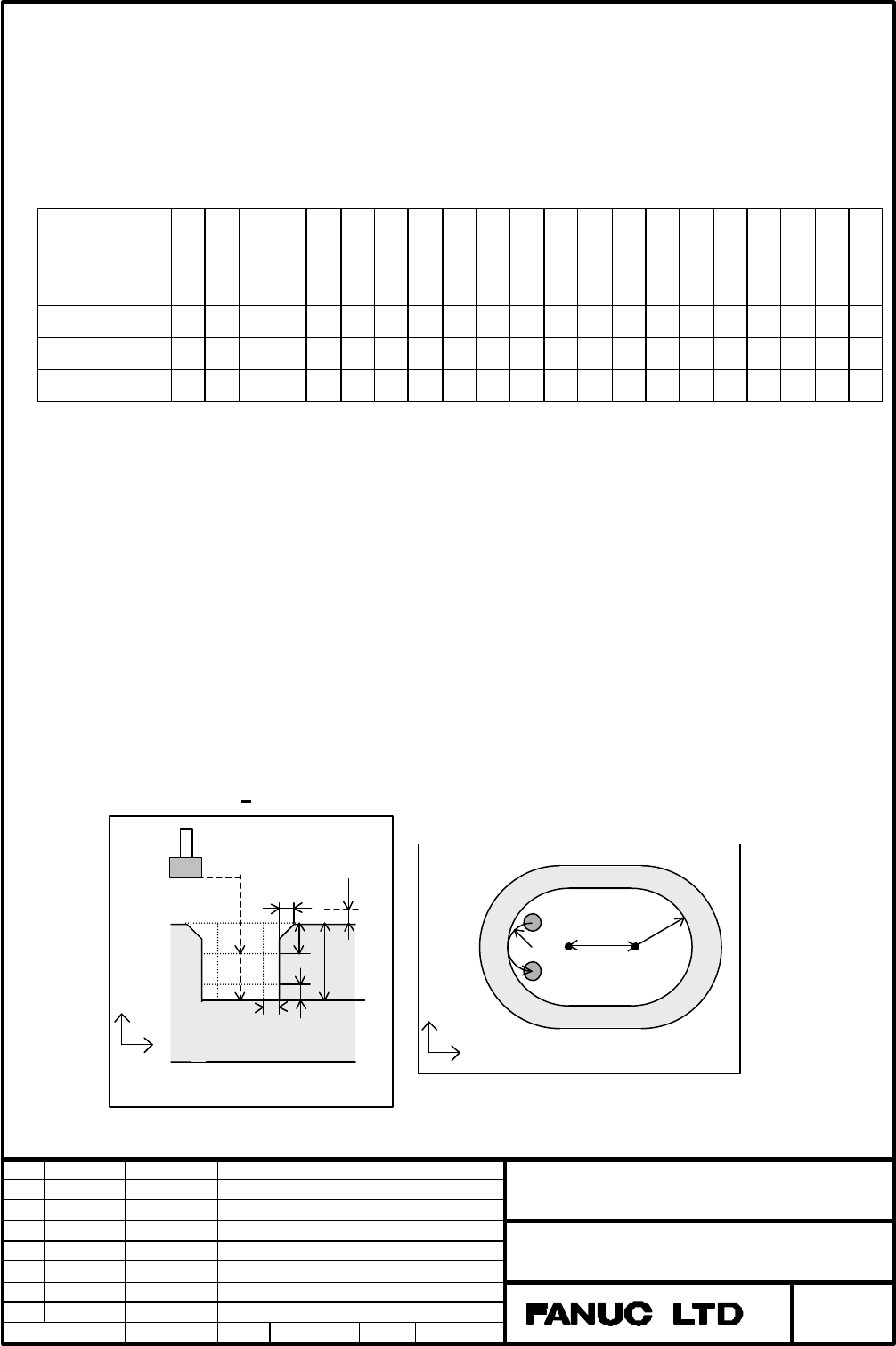

Embedded macro for milling Supplement to Manual Page 49

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
49 / 59
K : Approach / escape
The radius of approach or escape. The movement is performed as a quarter arc.
It is calculated automatically if not input.
The following table shows addresses used in arguments in each machining process.
G231 T Z B J H D C D J H C F E X Y R S Q M W K
Rough # # # # # # _ _ _ _ # # # # # # _ _ & & _
Bottom finish # # # _ # # _ _ _ _ # # # # # # _ _ & & _
Side finish # # # # # _ _ _ _ _ _ # # # # # _ _ & & &
Chamfer # # # _ _ _ # # # # _ # # # # # _ _ & & &
Drill # # # _ _ _ _ _ _ _ _ # _ # # # # # & _ _
# : Specify necessarily
& : Specify. If there is no input, default data is specified.
_ : Do not specify.
Movements :
Except for the shape of the circle, the basic machining movements are similar to those of
Square pocket.
2.4.3 Track pocket (G232)
This is a menu for pocketing the track shape.
Create ISO code program in the following form.
G232 P_ Z_ B_ J H_ F_ C_ W_ X_ Y_ • • • •;
Z
H
B
J
M
C
D
X
Z
Pocketing : Z-X plane
(X, Y)
R
U
K
X
Y
Track pocket
