Embedded macro for milling Supplement to Manual Page 15

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
15 / 59
J : Removal pitch
The machining allowance of one pass for rough cutting in the Z direction.
Rough cutting is done in one pass if not input.
H : Finishing allowance
The machining allowance in the Z direction for finish cutting. This is cut in one pass.
Finish cutting is not done if not input.
F : Feed rate
The feed rate of the tool.
C : Cutting width
The machining allowance one of pass in the XY direction.
It is specified a rate (%) of the tool. (less than 70%)
X : Center point X
X coordinate of the center of the square.
Y : Center point Y
Y coordinate of the center of the square.
U : U-length
The horizontal length of the square.
V : V-length
The vertical length of the square.
Q : U-side width
The width of the frame corresponding to side U.
R : V-side width
The width of the frame corresponding to side V.
K : Clearance
The amount of clearance for cutting feed in the Z axis at the approach or escape
movement. The default data is 3mm.

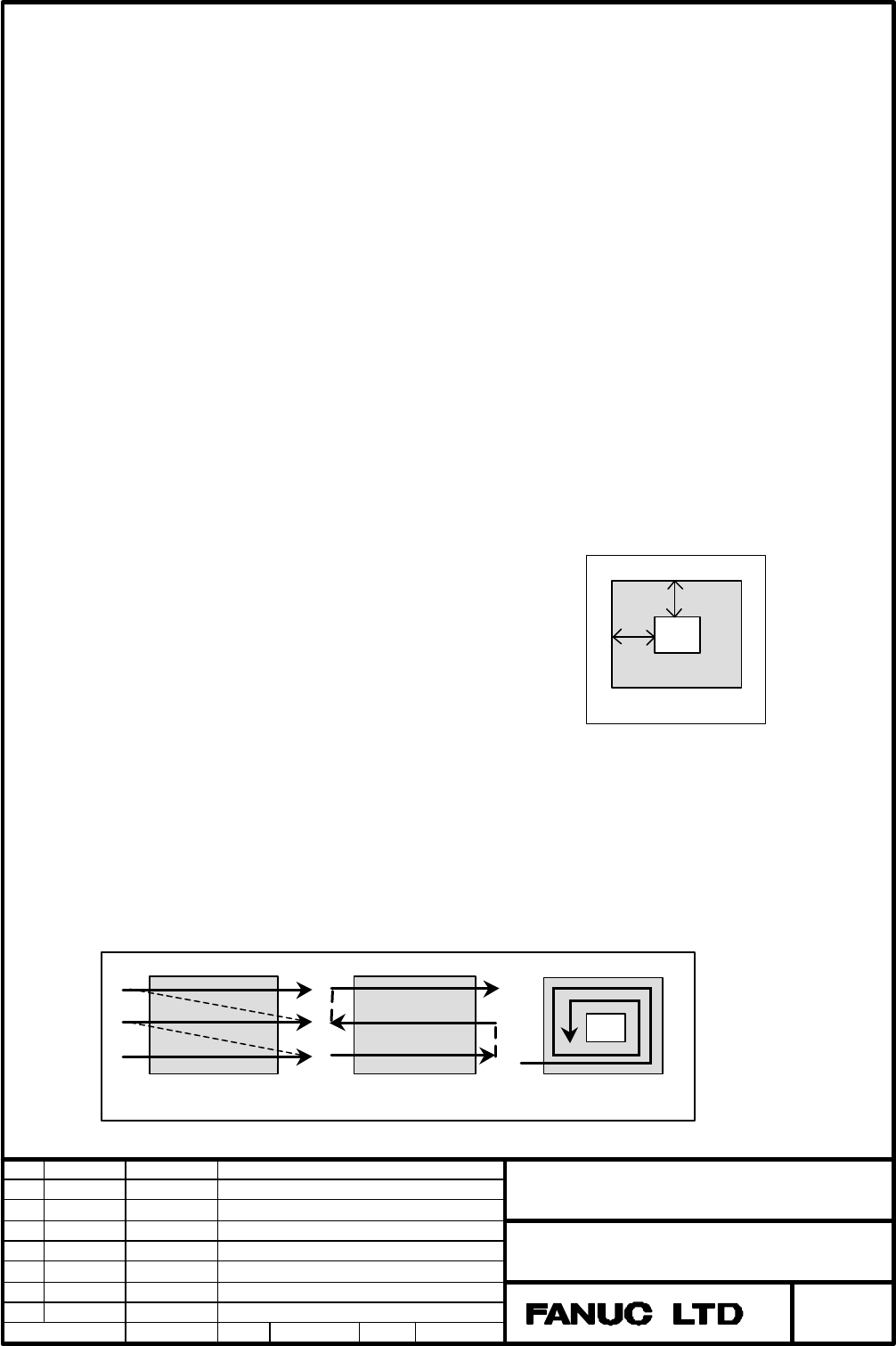

W : Cutting direction
1: Uni-direction
2: Bi-direction
3: Ring-direction
Uni-direction
Bi-direction
Ring-direction
Ring direction
Q
R
