FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
37 / 59
H : Bottom finish
The machining allowance of the bottom finish cutting. This is cut in one pass.
Bottom finish cutting is not done if not input.
I : Chamfer removal
The amount of the chamfering.
D : Tool small diameter
The small diameter of chamfer tool.
J : Chamfer angle
The tool nose angle of a chamfering tool.
H : Tool out depth
The thrust depth of a chamfering tool.
F : The feed rate of the tool.
X : Center point X
X coordinate of the center of the cutting surface after cutting.
Y : Center point Y
Y coordinate of the center of the cutting surface after cutting.
U : U-length
The length of the workpiece in the cutting surface.
C : Clearance
The amount of clearance for cutting feed in the Z axis at the approach or escape
movement. The default data is 3mm.
W : Cutting direction
1, 4: Down-cut : Rotation of the cutting tool in the forward direction
2, 3: Up-cut : Rotation of the cutting tool in the reverse direction
If there is no input, 1 is regarded.

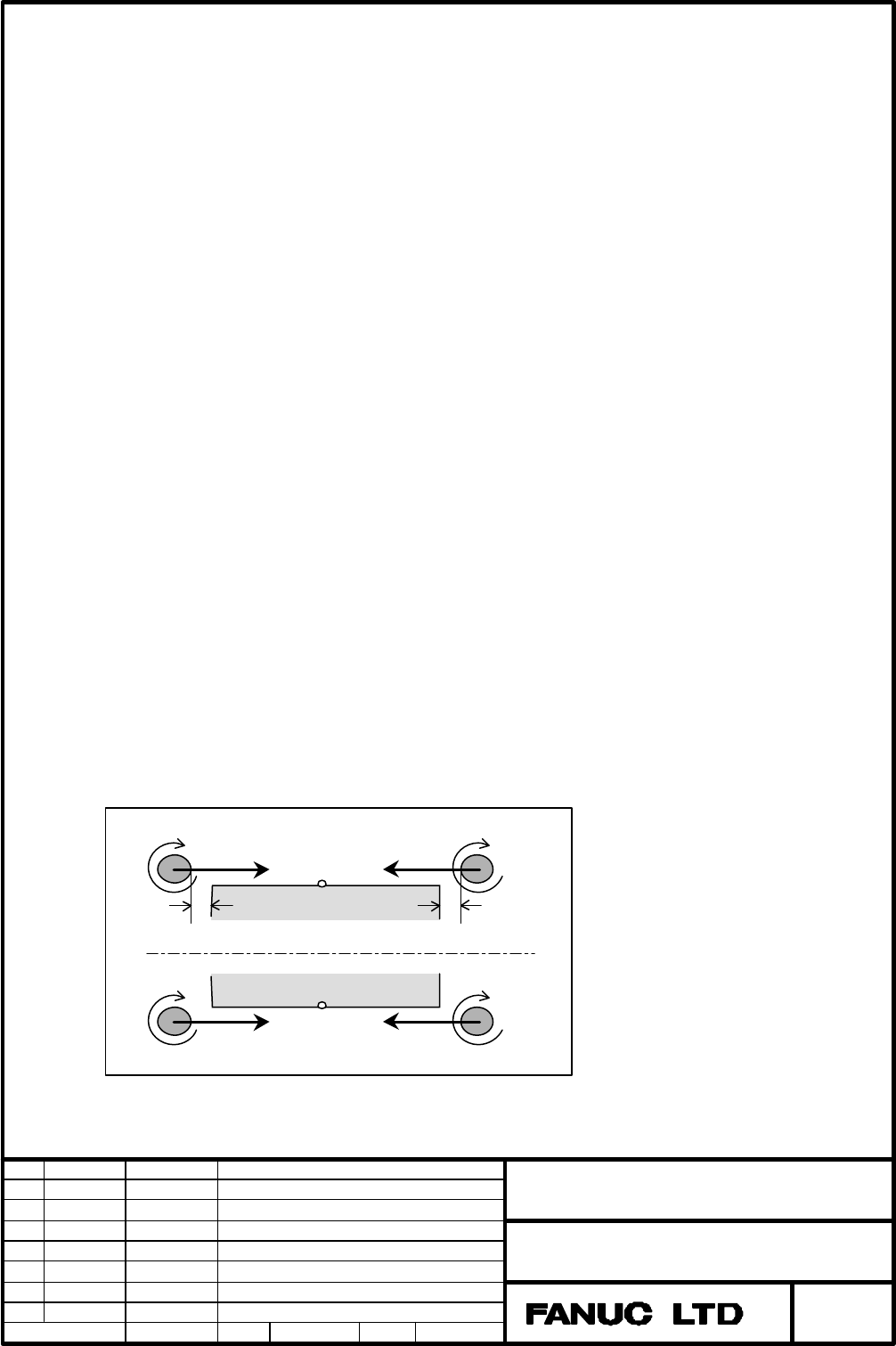

[4: Down-cut]
(X, Y)
(X, Y)
Approach / Escape gap
[2: Up-cut]
[1: Down-cut]
[3: Up-cut]
