FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
42 / 59

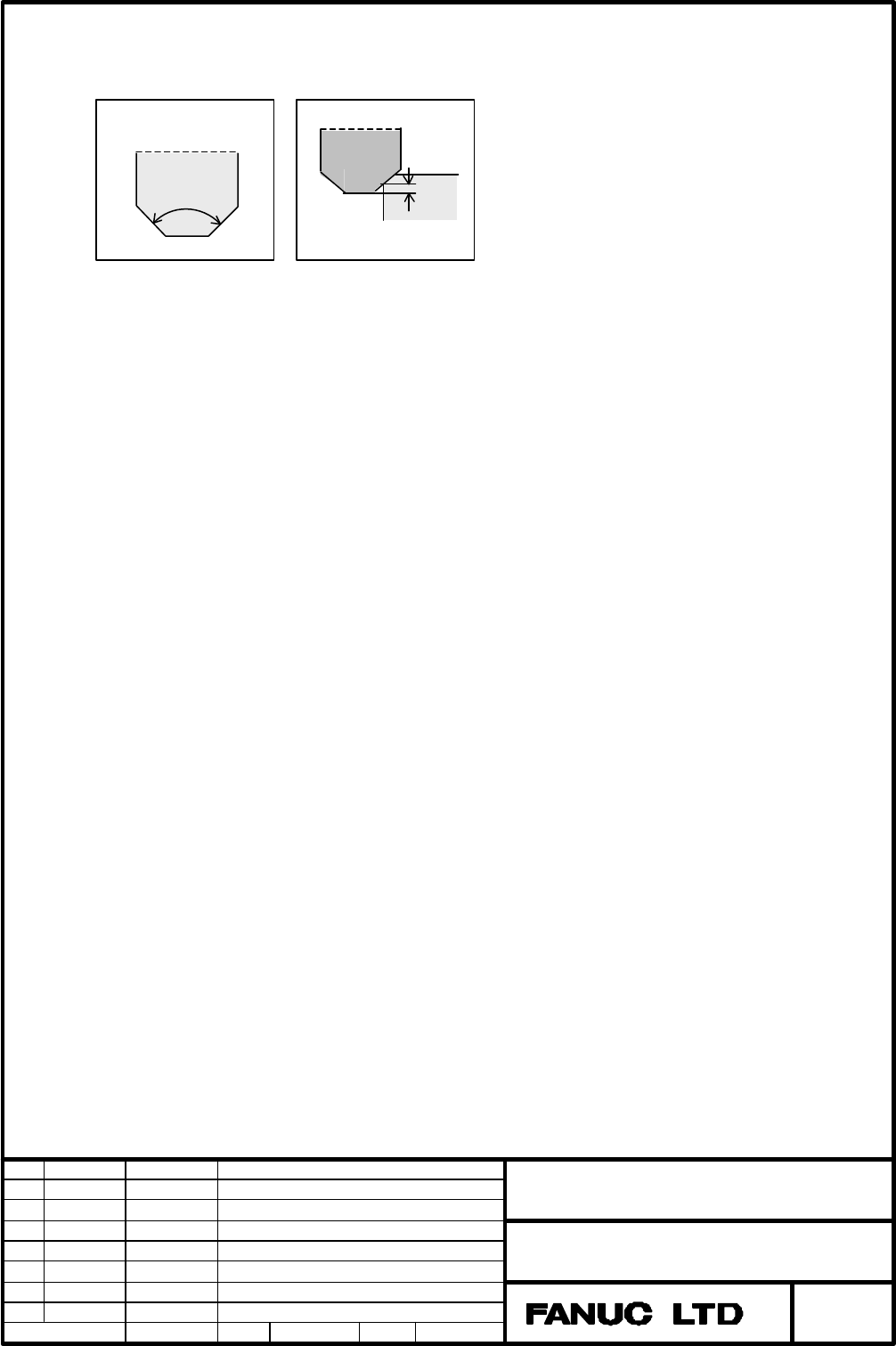

H : Tool out depth
The thrust depth of a chamfering tool.
F : The feed rate of the tool.
E : Z_cut feed rate
The cutting feed rate in Zaxis direction from point R.
(Point R = End point Z + Bottom removal + Clearance)
C : Cutting width
The machining allowance of one pass in the XY direction.
It is specified a rate (%) of the tool. (less than 70%)
X : Center point X
X coordinate of the center of the square.
Y : Center point Y
Y coordinate of the center of the square.
U : U-length
The horizontal length of the square.
V : V-length
The vertical length of the square.
S : Cycle select
Select the drilling cycle for pre-hole
1: G81 (Normal drilling)
2: G83 (Peck drilling)
3: G73 (High-speed peck drilling)
Q : Pitch depth
The depth of cut for each cutting cycle.
It is used for G83 (S:2) and G73 (S:3).
M : Clearance
The amount of clearance for cutting feed in the Z axis at the approach or escape
movement. The default data is 3mm.
Tool
J
Workpiece
H
Too
l
