Embedded macro for milling Supplement to Manual Page 54

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
54 / 59
J : Chamfer angle
The tool nose angle of a chamfering tool.
H : Tool out depth
The thrust depth of a chamfering tool.
F : The feed rate of the tool.
C : Cutting width
The machining allowance of one pass in the XY direction.
It is specified a rate (%) of the tool. (less than 70%)
X : Center point X
X coordinate of the center of the groove.
Y : Center point Y
Y coordinate of the center of the groove.
U : U-length
The length of the groove.
V : Groove width
The width of the groove.
M : Clearance
The amount of clearance for cutting feed in the Z axis at the approach or escape
movement. The default data is 3mm.
W : Cutting direction
1: Down-cut : Rotation of the cutting tool in the forward direction
2: Up-cut : Rotation of the cutting tool in the reverse direction
If there is no input, 1 is regarded.
A : Incline angle
The angle between the U side and X axis, when the work is inclined with respect to
the X axis. It is considered to be 0 if not input.
K : Approach gap
The gap between the tool edge in the cutting feed start point and the workpiece .
If there is no input, 5mm is regarded.
Q : Escape gap
The gap between the tool edge and the workpiece when the tool moves away from the
work. If there is no input, 5mm is regarded.

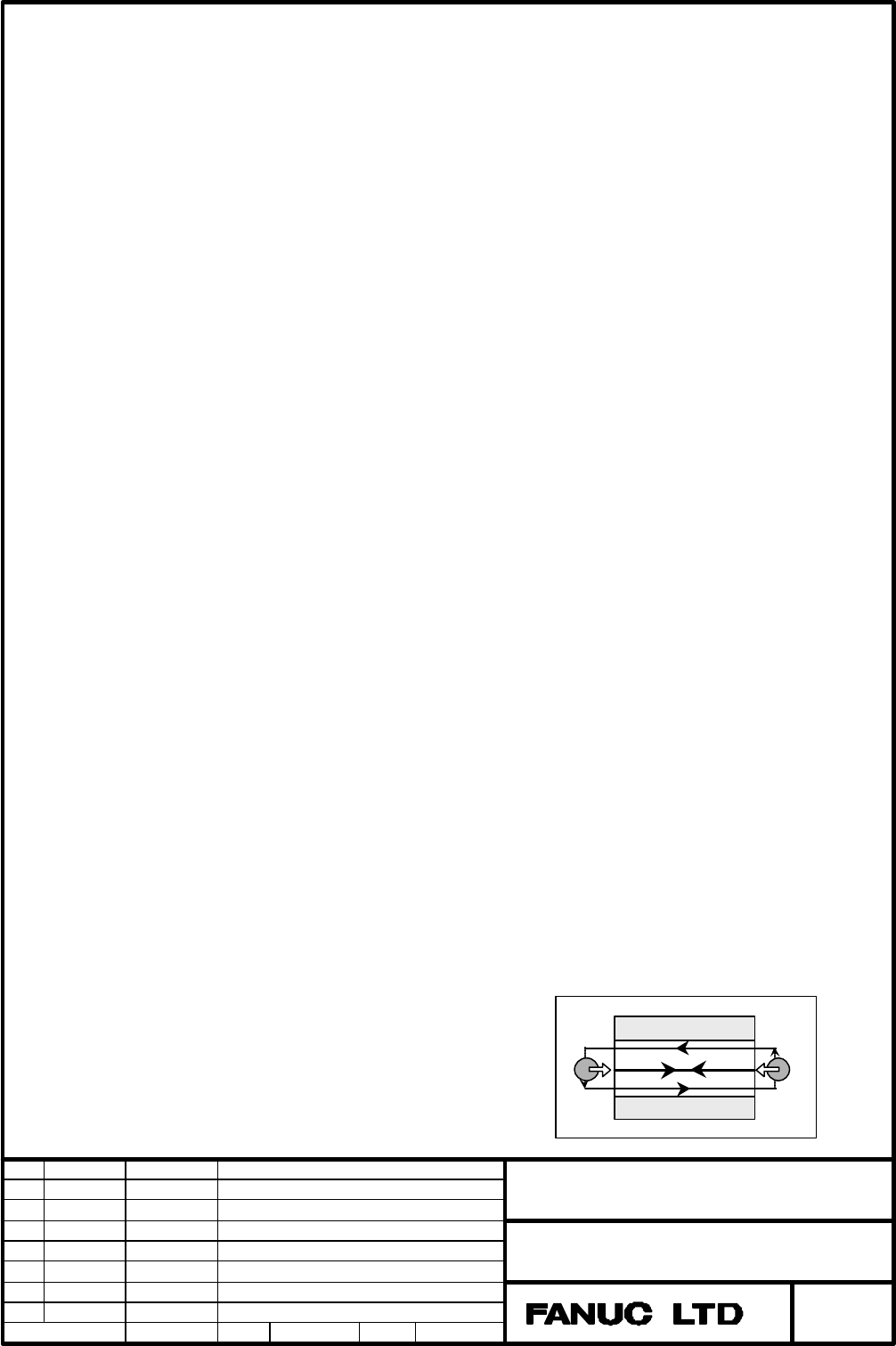

N : Start point
The starting position of the machining (1, 2).
If there is no input, 1 is regarded.
[ 1 ]
[ 2 ]
