Embedded macro for milling Supplement to Manual Page 17

Supplement to Manual
Apprv.Desig
.
Edit
Date
Design
Description
FANUC Series 16i/18i/21i-MA
Embedded macro for milling
A-77901E
Drawing No.
Title
2000.07.17
H.Minam
Date
2001.08.17
(2) is added.
Page
17 / 59

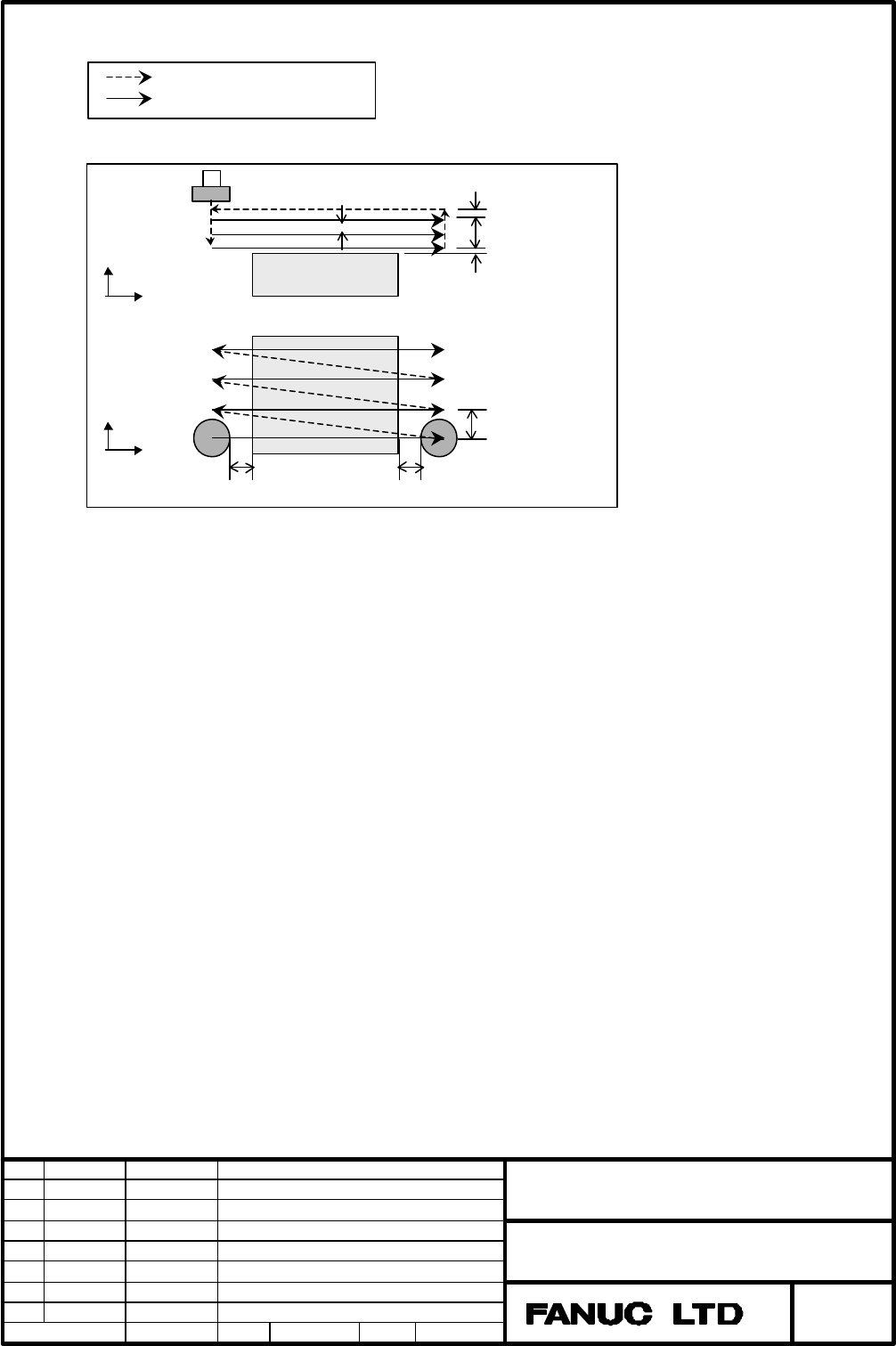

Movements :
Uni - direction
a) In the case of rough cutting
1. Rapid traverse up to the starting point (A).
2. Rapid traverse along the Z axis up to the point equal to
(END POINT Z + REMOVAL DEPTH – REMOVAL PITCH)
3. Cutting feed to the opposite side (B) of the starting point.
4. Rise along the Z axis in rapid traverse by an amount of
(CLEARANCE + REMOVAL PITCH).
5. Rapid traverse along the X-Y axis up to the next starting point (C).
6. Descent along the Z axis in rapid traverse by an amount of
(CLEARANCE + REMOVAL PITCH).
7. 3.- 6. is repeated up to the ending point (D).
8.Rise along the Z axis in rapid traverse by an amount of
(CLEARANCE + REMOVAL PITCH).
9.Repeat steps 1. to 8. advancing in the –Z direction, pitch by pitch, up to the point
(END POINT Z + FINISHING ALW.).
10. Rise along the Z axis up to the point
(END POINT Z + FINISHING ALW. + CLEARANCE).
Feed Traverse (G01)
Rapid Traverse
(G
00)
Pitch
X
X
Z
Y
Clearance
Depth
Finish ALW.
Cutting Width
Approach Gap
Escape Gap
A
B
C
D
