5. NC PROGRAM B-62994EN/02
-92-
Explanation
l Program directory screen

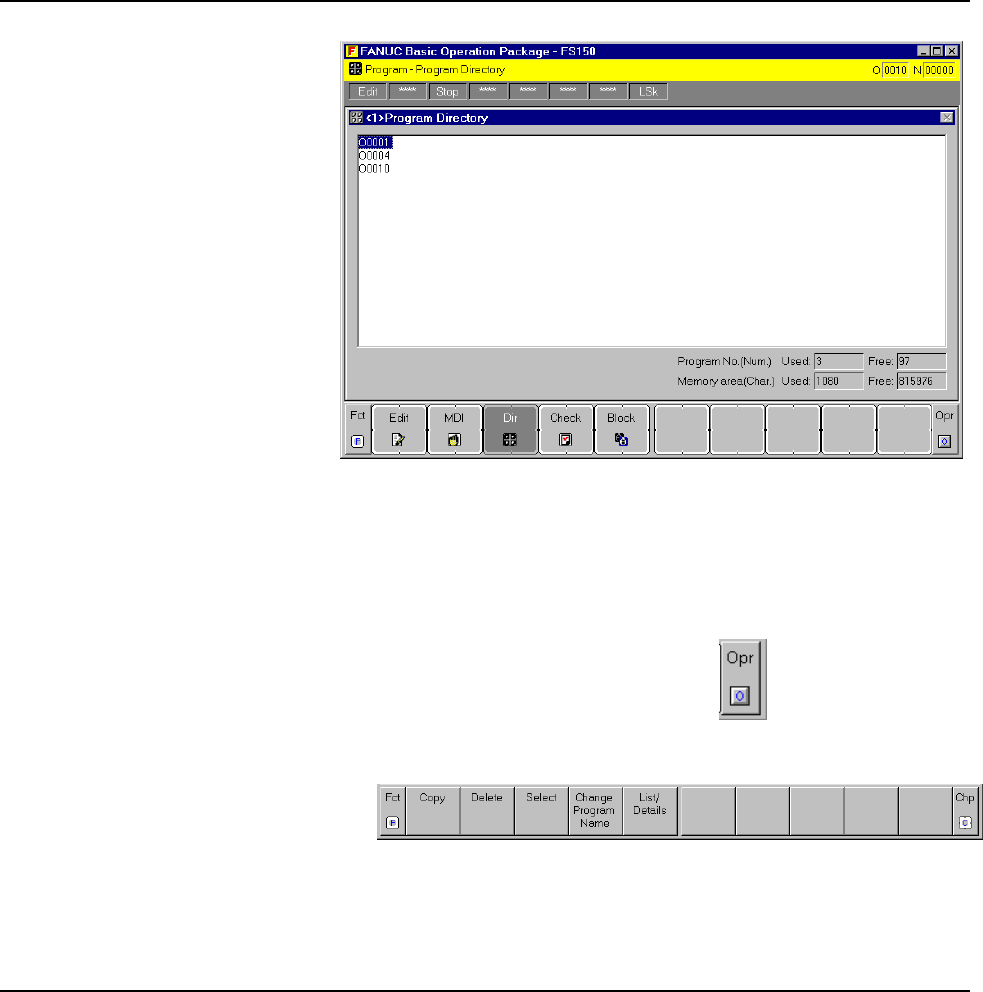

A list of the NC programs stored in the CNC is displayed.
To use a function such as the "Copy" or "Delete" function for a NC
program, press the operation selection key .
The operation soft keys appear.
For details of each function, see the description below.
5.3.1 Copying a NC program
A NC program can be copied.
Procedure
1. If the [Program Directory] screen is currently not displayed, display the
[Program Directory] screen by applying the procedure explained in
Section 5.3, "Displaying the NC Program Directory."
