5. NC PROGRAM B-62994EN/02

-64-

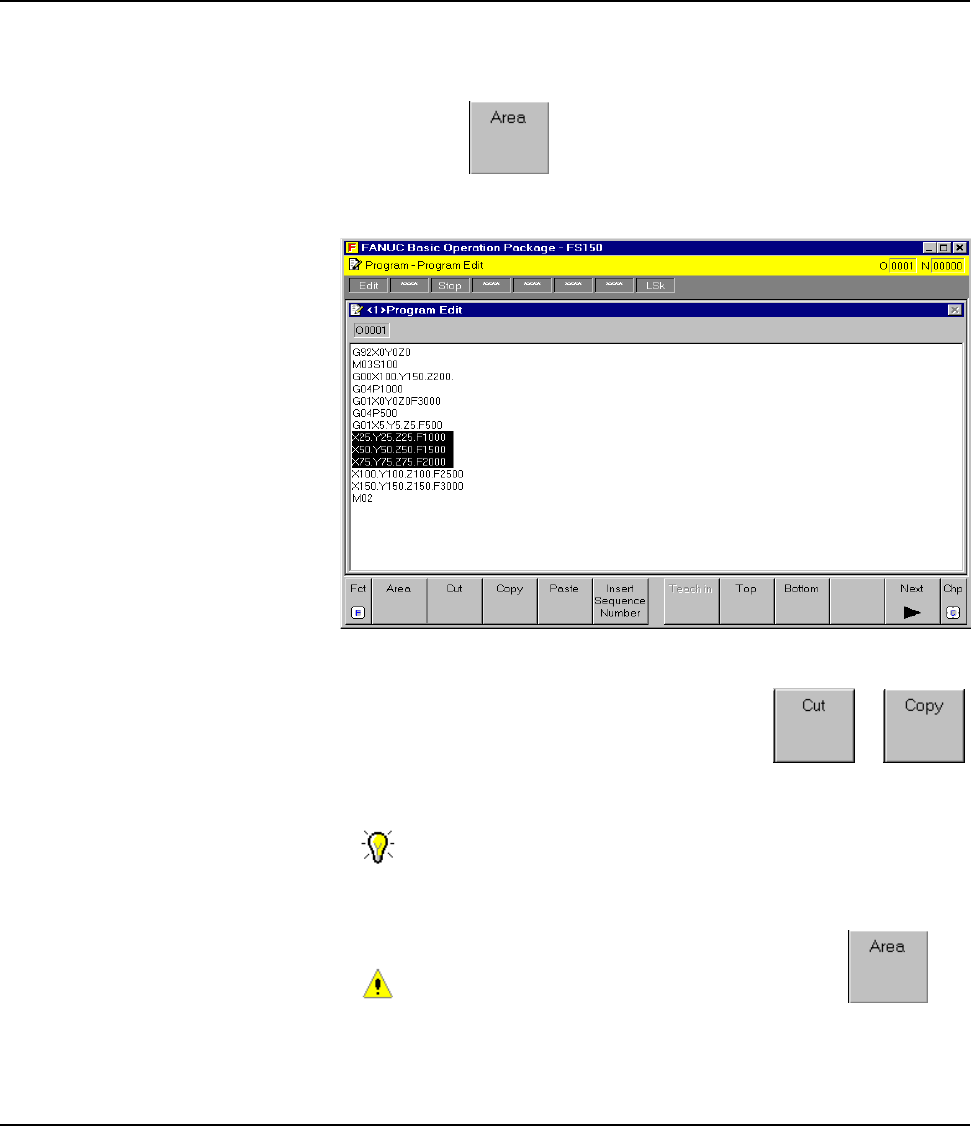

2. Position the cursor to the beginning or end of the character strings to be

selected.

3. Press the soft key.

4. Select the character strings by using the direction keys.

Cut or copy can be performed by selecting the or

soft key.

Character strings can also be selected by pressing a direction key

while holding down the [Shift] key.

To cancel character string selection mode, press the soft

key again.

5.1.8 Cutting character strings from a NC program

Character strings in a NC program can be cut.

Procedure

1. Select the character strings you want to cut from a NC program.

For an explanation of how to select character strings, see Section 5.1.7,

"Selecting character strings in a NC program."
