6.6.3 Changing the life status of a tool included in the tool life
management data (for lathe systems)
The life status of a tool included in the tool life management data can be
changed.
Procedure

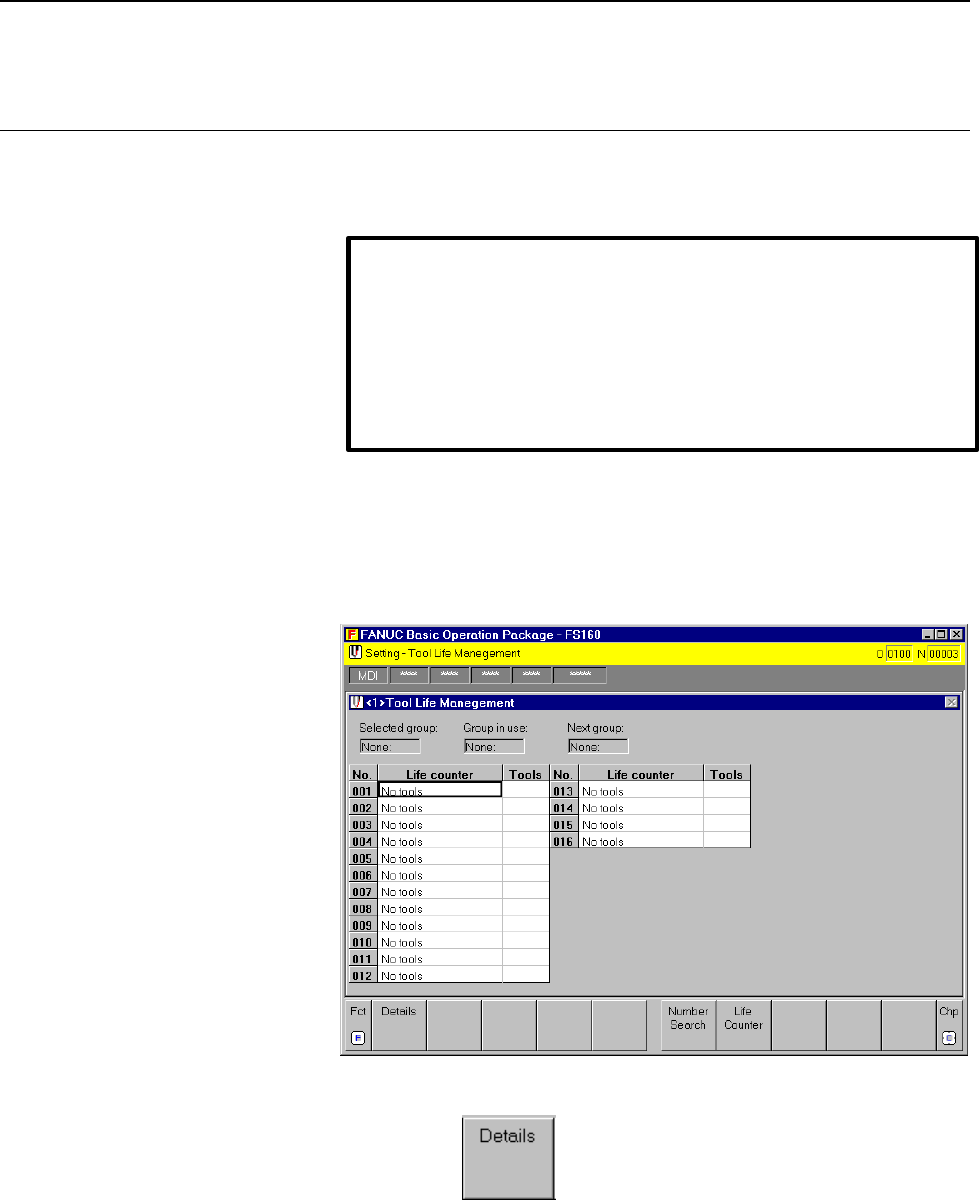

1. When the [Tool Life Management] screen is currently not displayed,
follow the procedure described in Section 6.6, "Tool Life Management
Data Settings" to display the [Tool Life Management] screen.
2. Choose the desired group from the list.
3. Press the soft key.
The details of the selected tool group appear.
NOTE
The life status of a tool can be changed after the tool information
registration program is executed to add the tool data to the tool life
management data.
For details of the tool registration program and program execution,
refer to the operator's manual provided with the CNC being used.
