6. SETTING B-62994EN/02
-144-

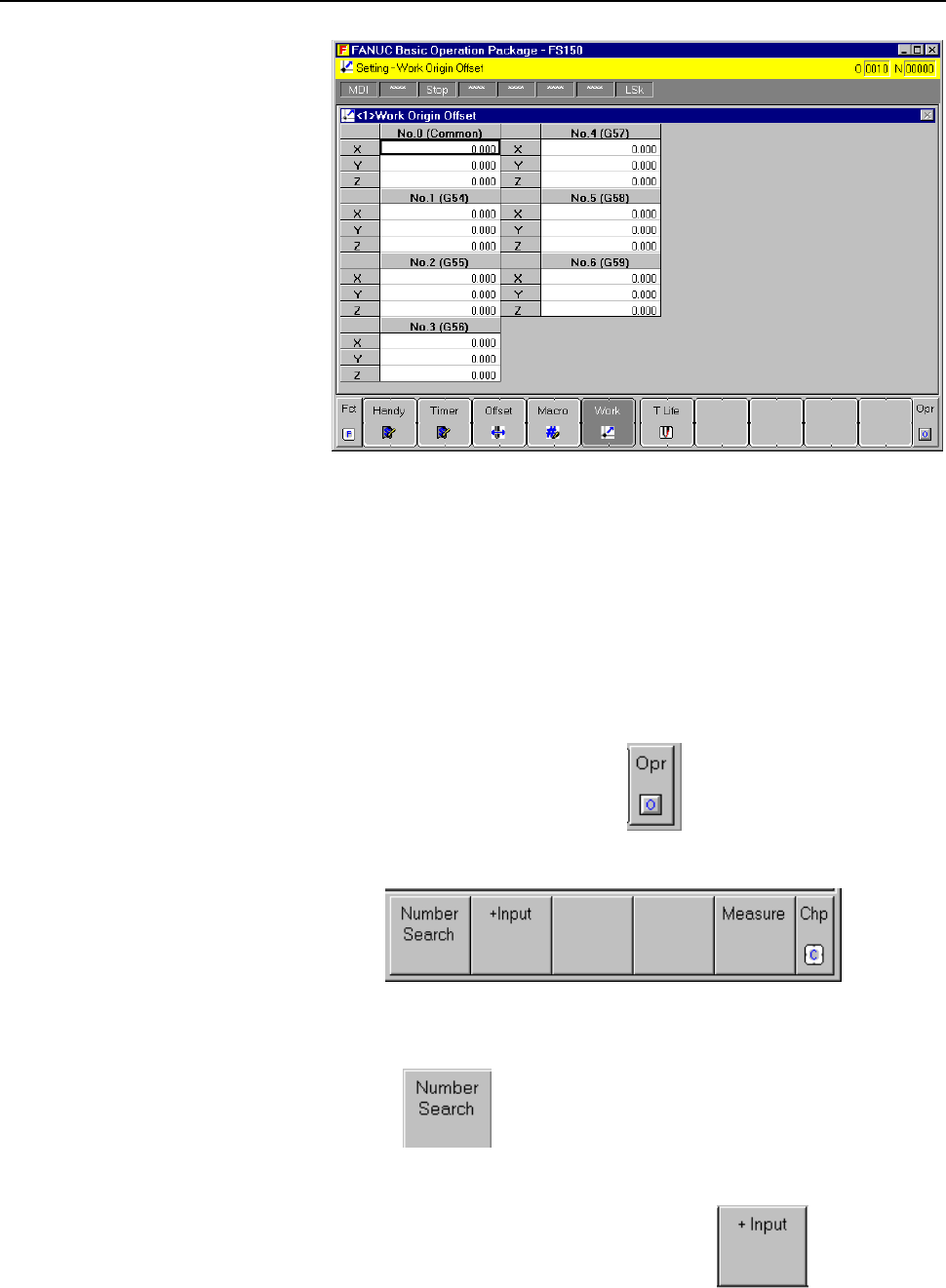

4. Choose the desired data item and specify an appropriate offset value.
Explanation
l Data to be set
• Workpiece origin offset
A workpiece origin offset value is set as the position of the workpiece
origin as viewed from the machine zero point.
l Operation soft keys
Press the operation selection key .
The operation soft keys appear.
• Searching for workpiece origin offset data
To find the desired workpiece origin offset data, press the
key and specify the desired data number.
• Incremental input
To perform incremental input, press the key.
For details of the other functions, see the description below.
