OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 45

Operators manual
B-62994EN/02 3. SETTING THE PARAMETERS REQUIRED TO USE BASIC OPERATION PACKAGE 1
-27-
3.1 Setting the CNC Parameters

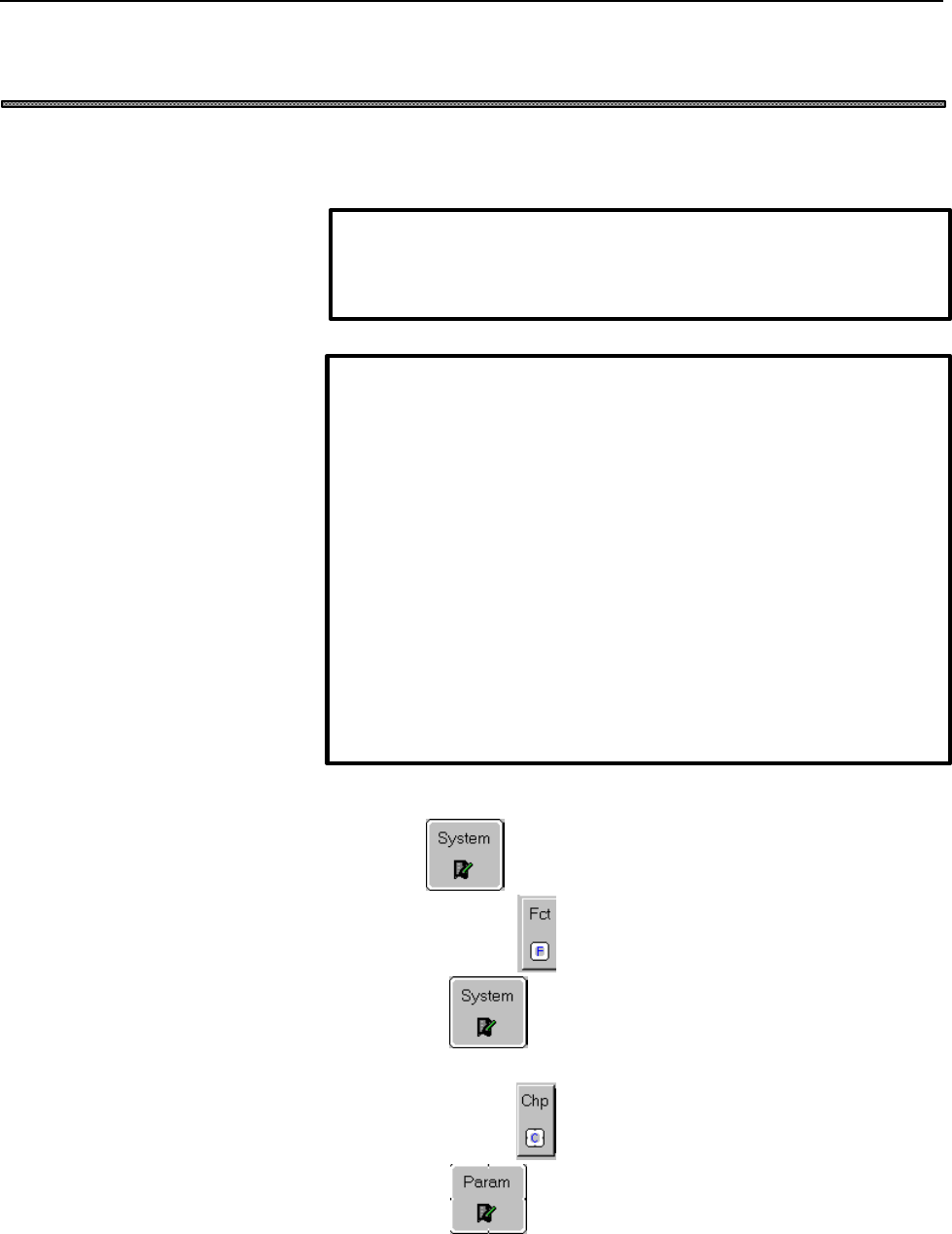

This section describes how to set the CNC parameters required to use Basic
Operation Package 1.
Procedure
1. If the soft key is currently not displayed, press the function
selection soft key .
2. Press the soft key.
3. If the [Parameter] screen is currently not displayed, press the chapter
selection soft key .
Press the soft key.
The [Parameter] screen appears.
NOTE
If the CNC parameters are not set, screen display and the writing of
programs and MDI commands cannot be performed normally.
NOTE
To set the parameters, first establish the following status:
l Setting data
• Parameter Write enabled
l Operation
Set either of the following statuses:
• Emergency stop
• Stopped or paused in MDI mode
For an explanation of how to specify the setting data, see Section 6.1,
"Setting Data."
To change the CNC operating mode from the software operator's panel,
see Section 6.7, "Software Operator's Panel Settings."
