B-62994EN/02 11. CUSTOMIZATION

-341-

11.2.2 Changing the order in which screens appear

This section describes how to change the order in which the function, chapter,

or child window screens appear.

Procedure

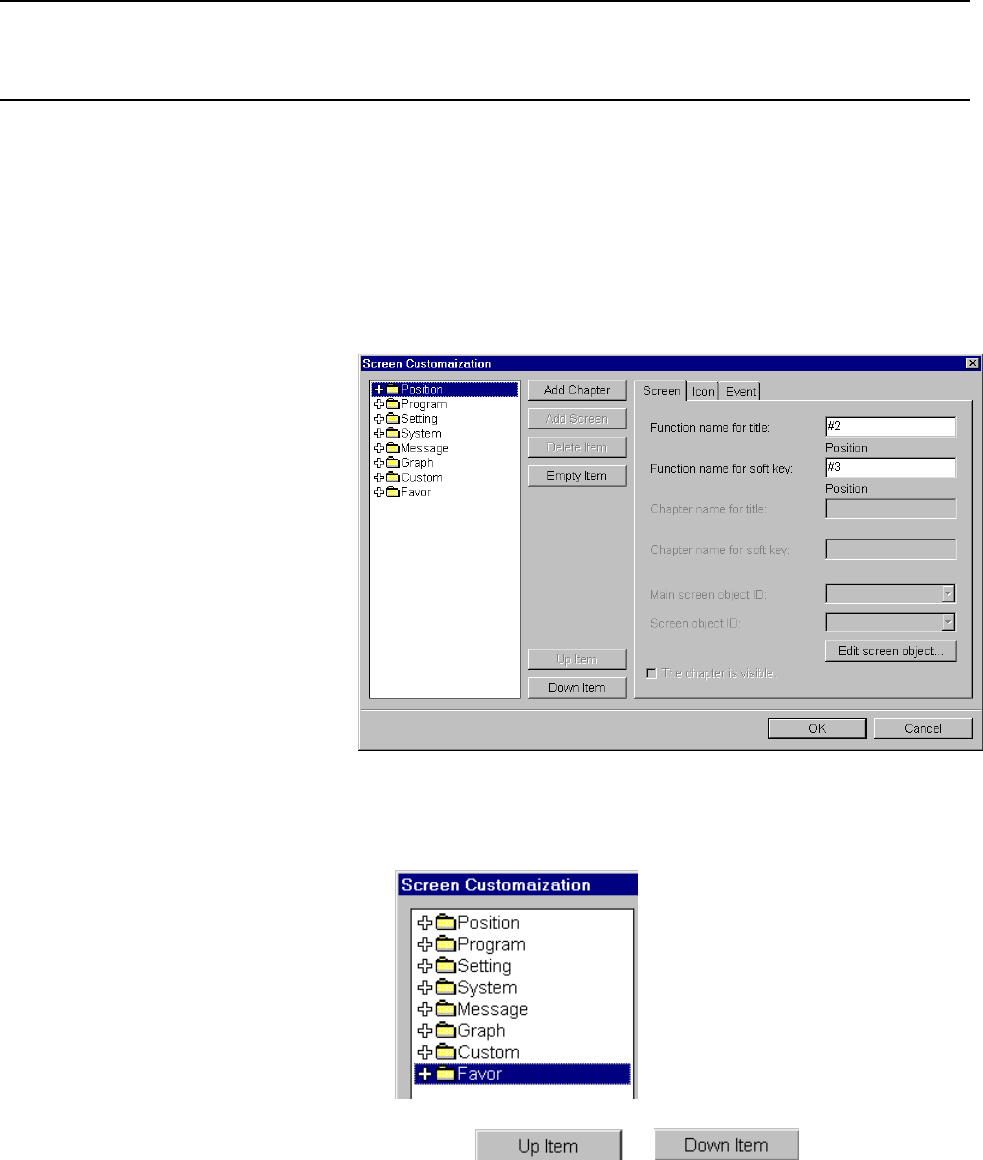

1. If the [Screen Customization] screen is currently not displayed, follow

the procedure shown in Section 11.2, "Customizing Screens" to display

the [Screen Customization] screen.

2. In the screen layout tree, select a function, chapter, or child window

object to be moved to another position.

3. Click the or button to move the

selected object to the desired position.
