5. NC PROGRAM B-62994EN/02
-80-
5.2.2 Replacing a character string in an MDI program
A specified character string in an MDI program can be replaced with another,
specified character string.
Procedure
1. If the [MDI Program] screen is currently not displayed, display the
[MDI Program] screen by applying the procedure explained in Section
5.2, "Editing an MDI Program."

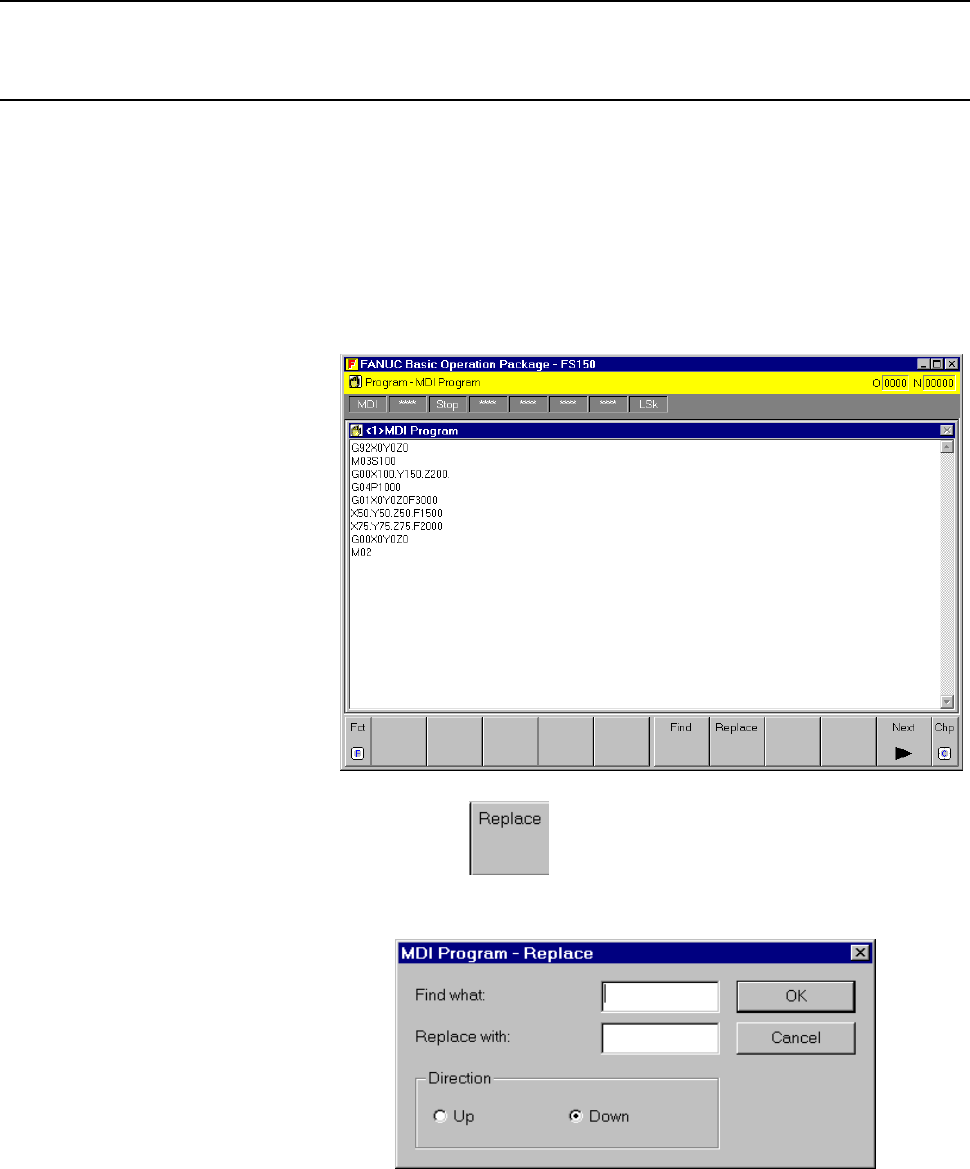

2. Press the soft key.
The [MDI Program - Replace] screen appears.
3. Enter the character string you want to find, and the character string
with which you want to replace the found character string.
Specify the search direction as necessary.
Click the <OK> button.
To perform another replacement operation, repeat steps 2 and 3 above.
