OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 89

Operators manual
B-62994EN/02 5. NC PROGRAM
-71-

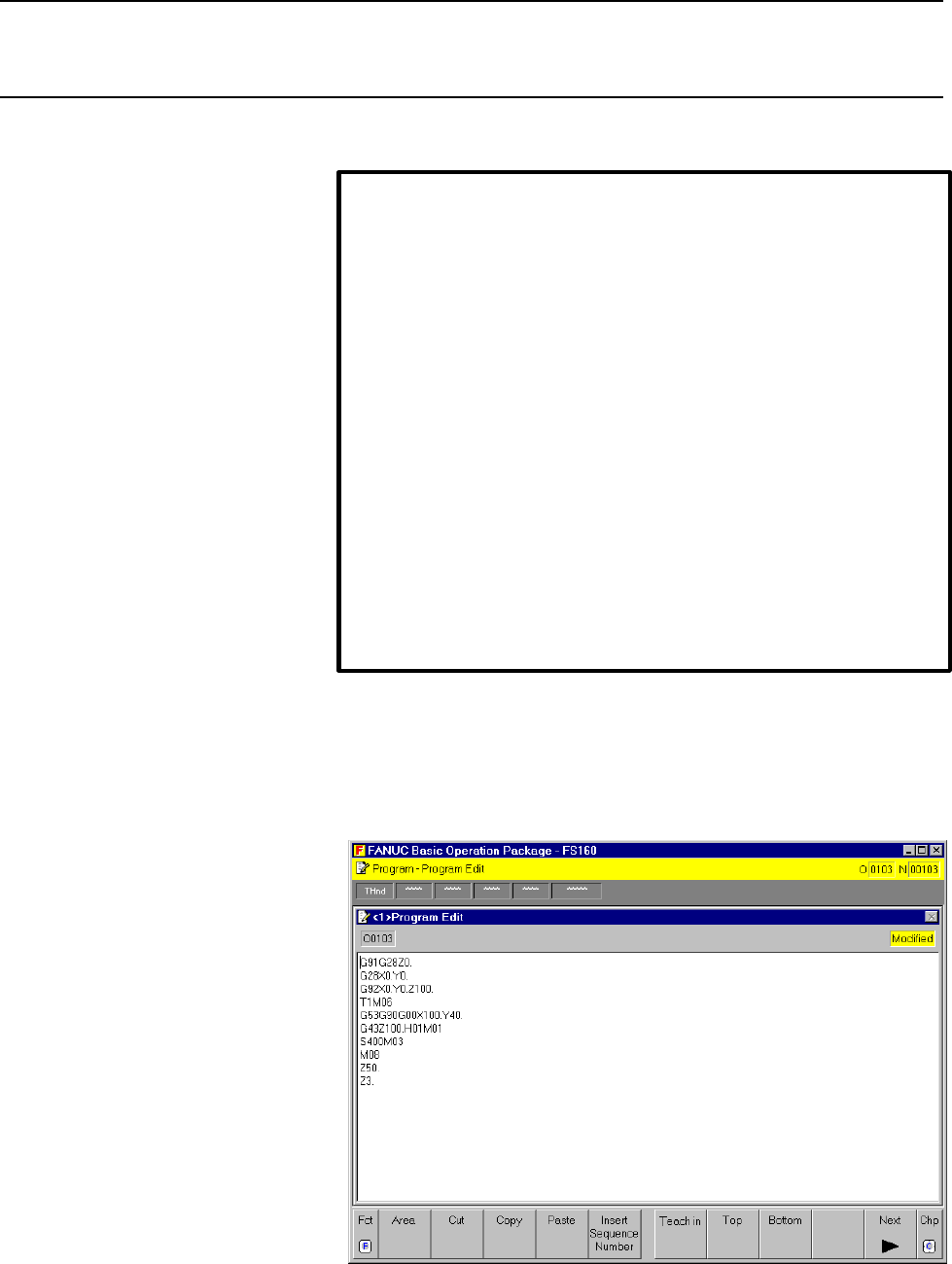

5.1.12 Entering a coordinate value into a NC program
The current absolute coordinate value can be entered into a program.
Procedure
1. If the [Program Edit] screen is currently not displayed, display the
[Program Edit] screen by applying the procedure explained in Section
5.1, "Editing a NC Program."
NOTE
A CNC option (playback) is required to enter a coordinate value into a
program.
Before entering a coordinate value into the program, change from the
operation status explained in Section 5.1, "Editing a NC Program," to
the following CNC operating mode:
• Teach in Handle mode
or
• Teach in JOG mode
When the Power Mate is used, no CNC option is required to enter a
coordinate value into a program. Change the operation status
explained in Section 5.1, "Editing a Program," to the following CNC
operating mode:
• Teach in JOG/Handle mode
