11.3 Customizing Screen Objects
This section describes how to customize screen objects.
Procedure
1. Right-click the soft key area.
Alternatively, press the [Application] key on the keyboard (such as the
Microsoft Natural keyboard or 109 keyboard).
Alternatively, press [Shift]+[F10].

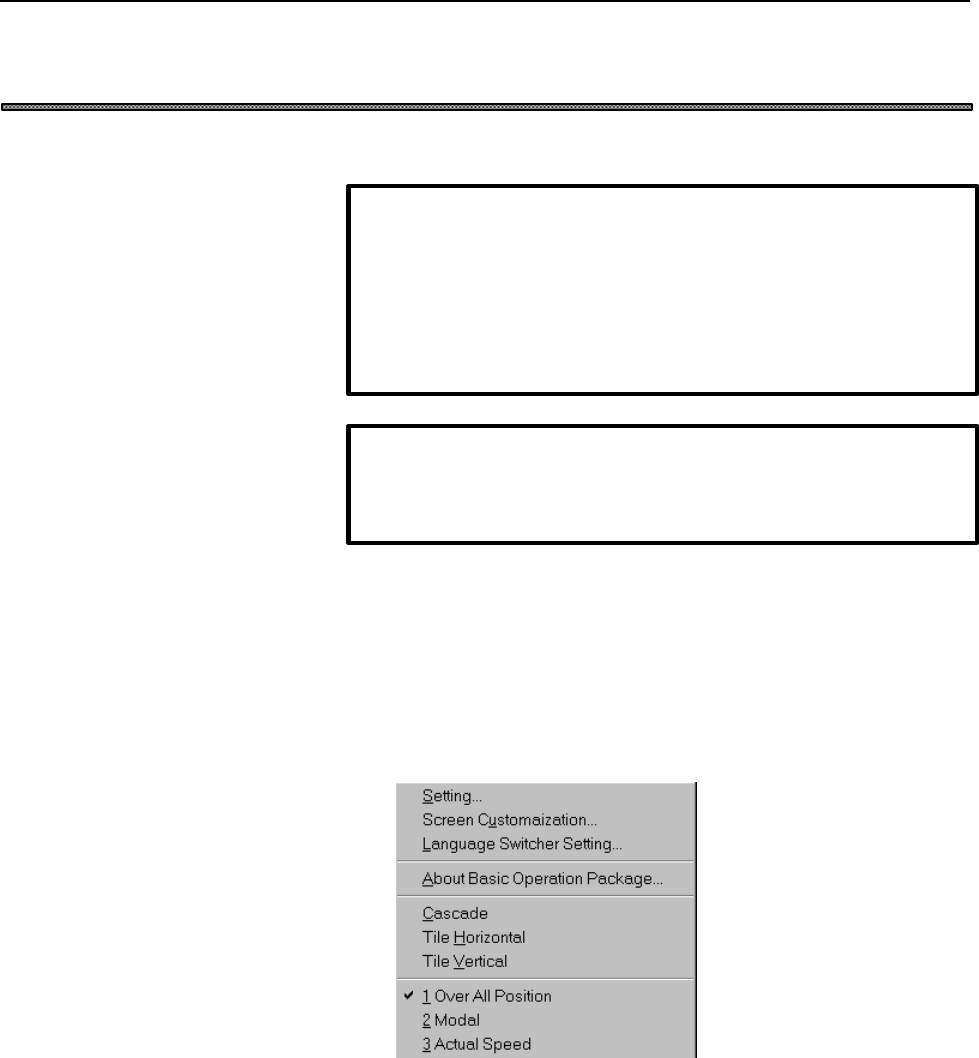

The following pop-up menu appears.
2. Choose [Screen Customization].
The [Screen Customization] screen appears.
NOTE
Customization results are stored in the setting file.
It is recommended that a backup of the setting file be made to guard
against data loss.
For details of the setting file, see Appendix 2, "BACKING UP THE
SETTING FILE."
NOTE
When customizing screen objects, the operator must be familiar with
Windows and OLE automation.
