B-62994EN/02 6. SETTING
-137-
3. Choose the desired variable and input an appropriate value.
6.4.3 Common variable 2 settings
Custom macro common variables 2 can be set.
The variable numbers range as indicated below:
FS15
Variable numbers #500 to #999 can be used. The range of variable
numbers that can actually be used varies with the CNC option.
FS16, FS18, FS21, NC Board
Variable numbers #500 to #531 can be used. The range can be expanded
to #500 to #999 by using the corresponding CNC option.
Power Mate
Variable numbers #500 to #699 can be used.
Procedure

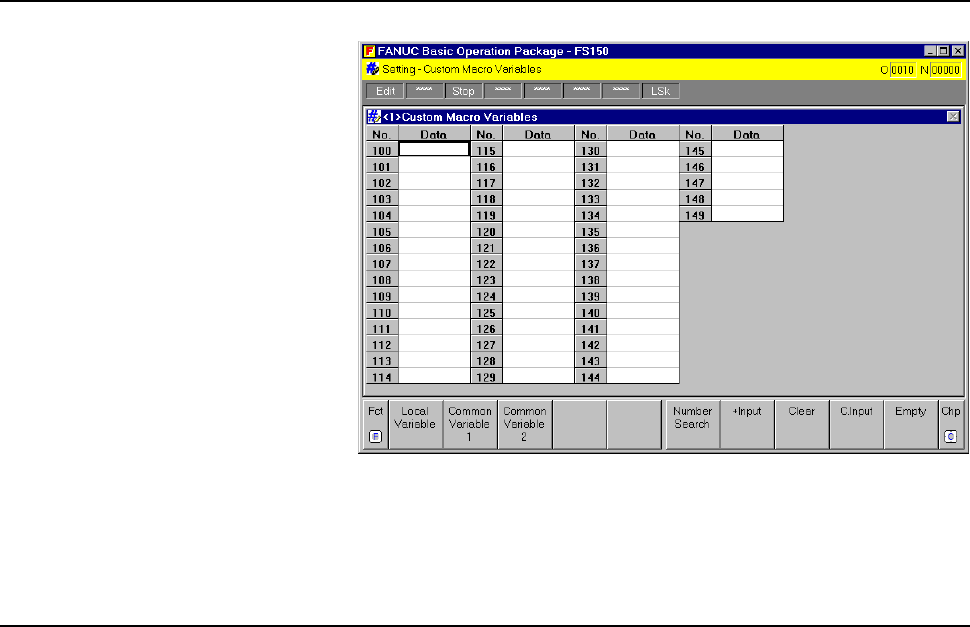

1. When the [Custom Macro Variables] screen is currently not displayed,
follow the procedure described in Section 6.4, "Custom Macro Variable
Settings" to display the [Custom Macro Variables] screen.
