4. POSITION DISPLAY B-62994EN/02
-50-
4.8 Displaying the Machining Time and Machined Parts Count
This section describes how to display the machining time and machined parts count.

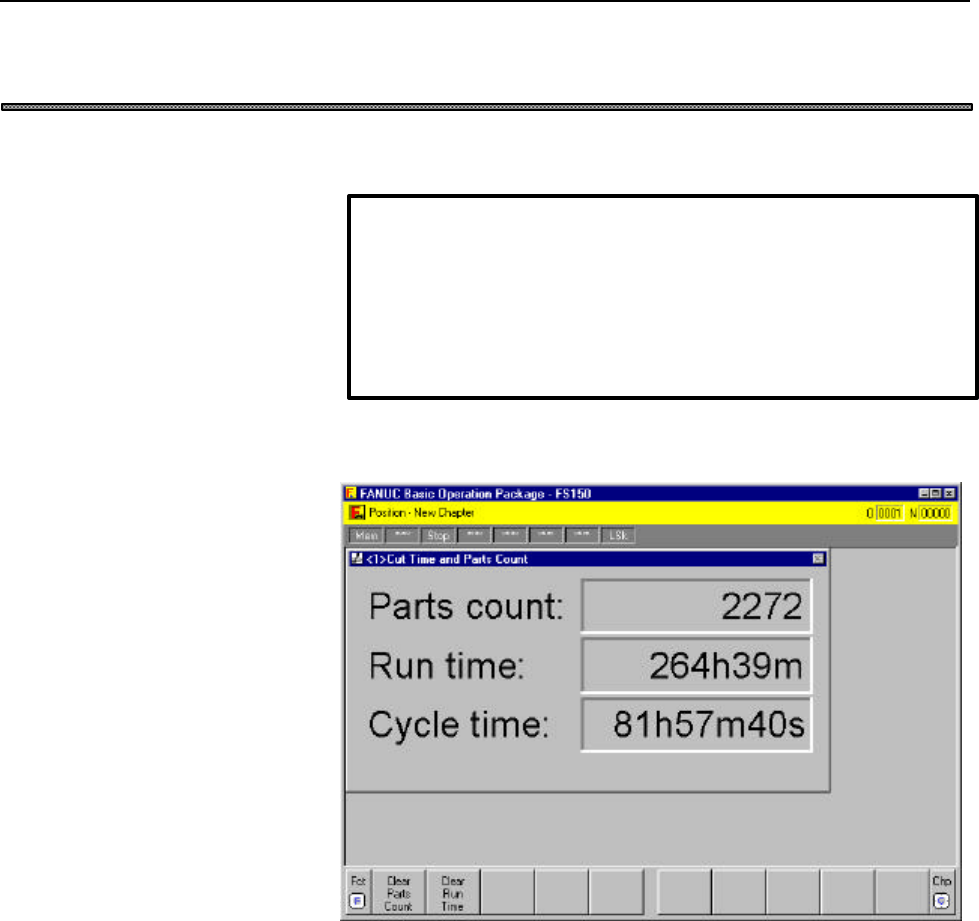

The [Cut Time and Parts Count] screen is displayed.
Explanation
l Machining time and machined parts count
• Parts count
Displays the number of machined parts.
• Run time
Displays the accumulated operating time during automatic operation
(excluding stopped and paused time).
• Cycle time
Displays the operating time during 1 cycle of automatic operation
(excluding stopped and paused time).
l Operation soft keys
NOTE
In the standard state, this screen cannot be displayed. Create a
screen containing screen object ID "CutTime" according to the
description in Section 11.2.1, "Creating the custom screens."
To display this screen for the FS16/18/21 or NC Board, the
corresponding CNC option is required.
