B-62994EN/02 7. SYSTEM
-229-
7.4.5 Deleting data files
This section describes how to delete different types of data files.
Procedure

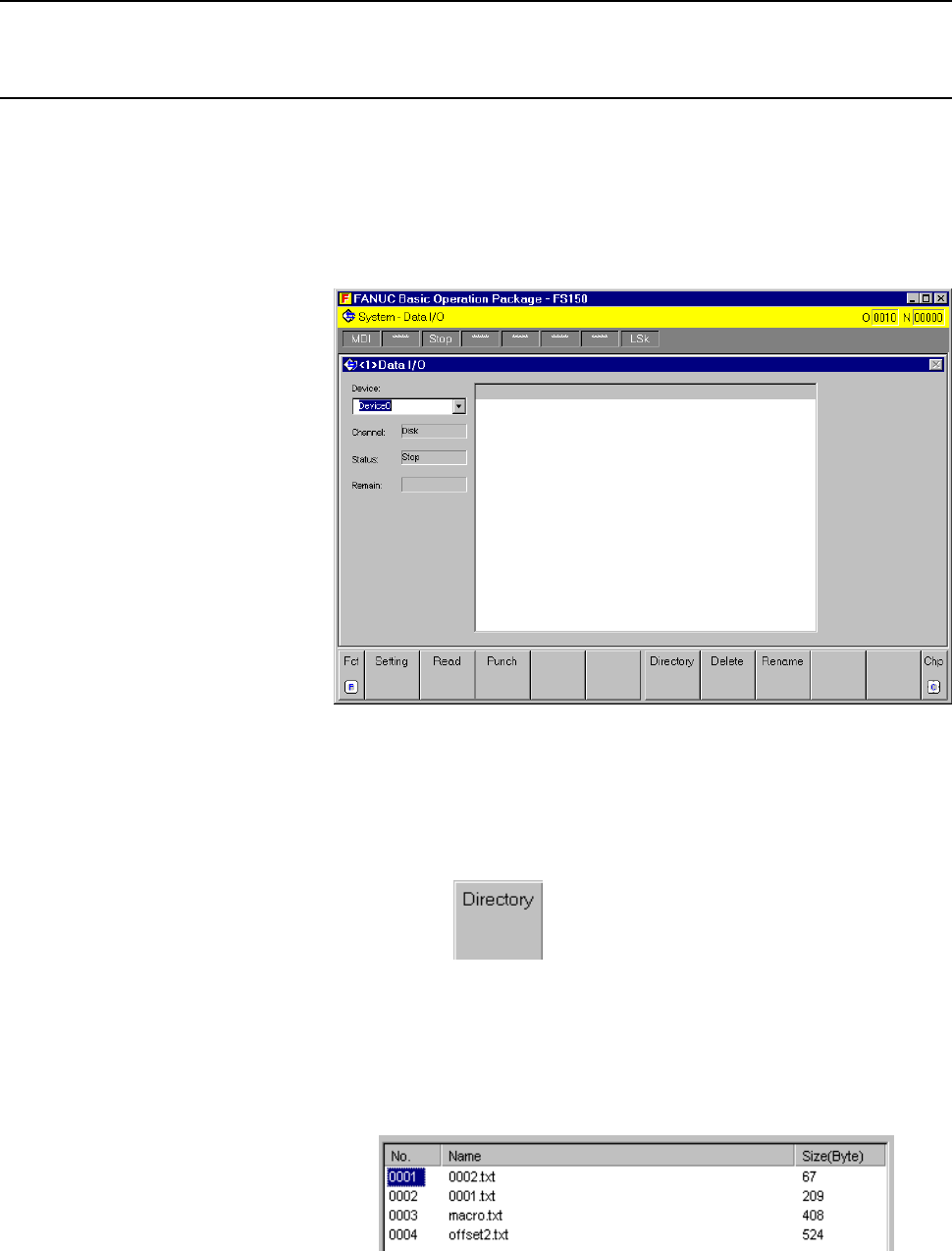

1. If the [Data I/O] screen is currently not displayed, display the [Data I/O]
screen as explained in Section 7.4 "Data Input/Output."
2. If the parameters for data input/output have not yet been set, set the
required parameters.
For information about setting, see Section 7.4.1, "Setting parameters for
input/output."
3. Select a device for deleting files as required.
4. Press the soft key.
A data file list is displayed.
If the communication device is not connected correctly, for example, an
error message is displayed. In such a case, check the communication
settings, the cable connection, power supply for the communication
device, and so forth.
5. From the list, select a file to be deleted.
Multiple files can be also selected.
