OPEN CNC (Basic Operation Package 1 for Windows95/NT) Operators manual Page 54

Operators manual
4. POSITION DISPLAY B-62994EN/02
-36-

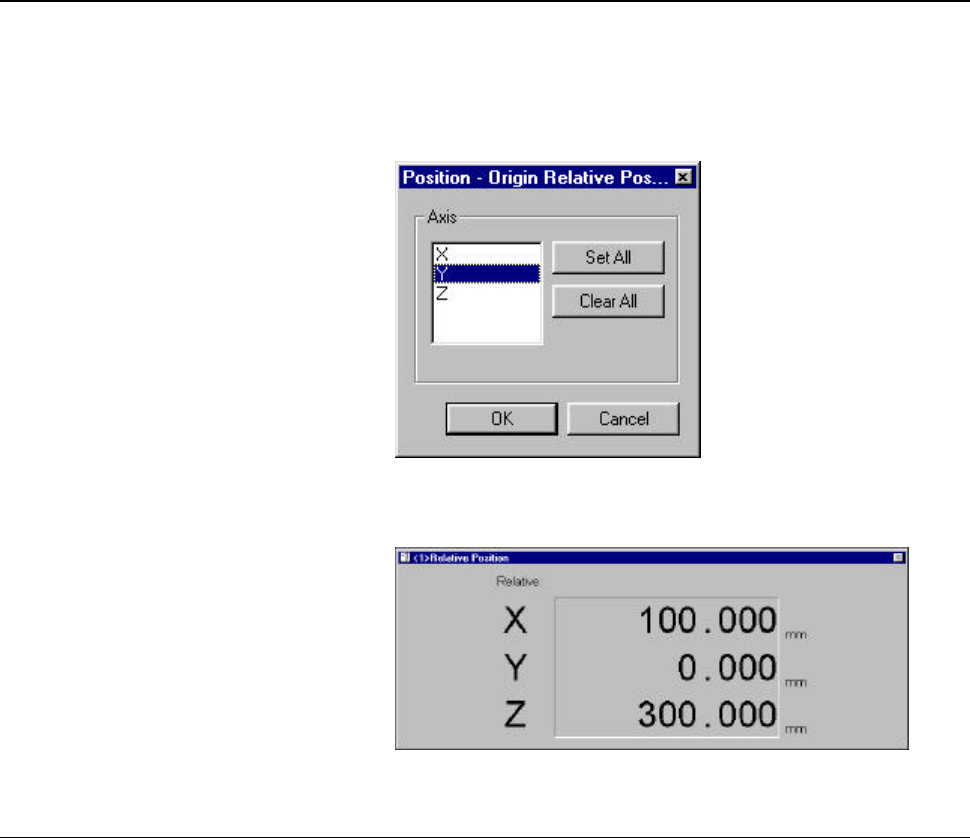

3. From the list of the coordinate axes, select one or more axes for which
the relative coordinates are to be reset.
To select all the axes, click the <Set All> button.
To deselect all the axes, click the <Clear All> button.
4. Clicking the <OK> button resets the selected relative coordinates to 0.
4.2.2 Presetting relative coordinates
The coordinates of the relative position can be preset to an entered value.
Procedure
1. If the [Relative Position] screen (or [Over All Position] screen) is
currently not displayed, display the [Relative Position] screen (or [Over
All Position] screen) by applying the procedure explained in Section
4.2, "Displaying the Relative Position" (or Section 4.1, " Overall
Position Display").
