11. CUSTOMIZATION B-62994EN/02
-356-
3. Change the desired setting items.
For details of the setting items, see Section 11.3.1, "Creating custom
screen objects."
4. Click the <OK> button on the [Edit Screen Object] screen.
This completes the editing of the screen object.
11.3.3 Deleting screen objects
This section describes how to delete screen objects.
Procedure

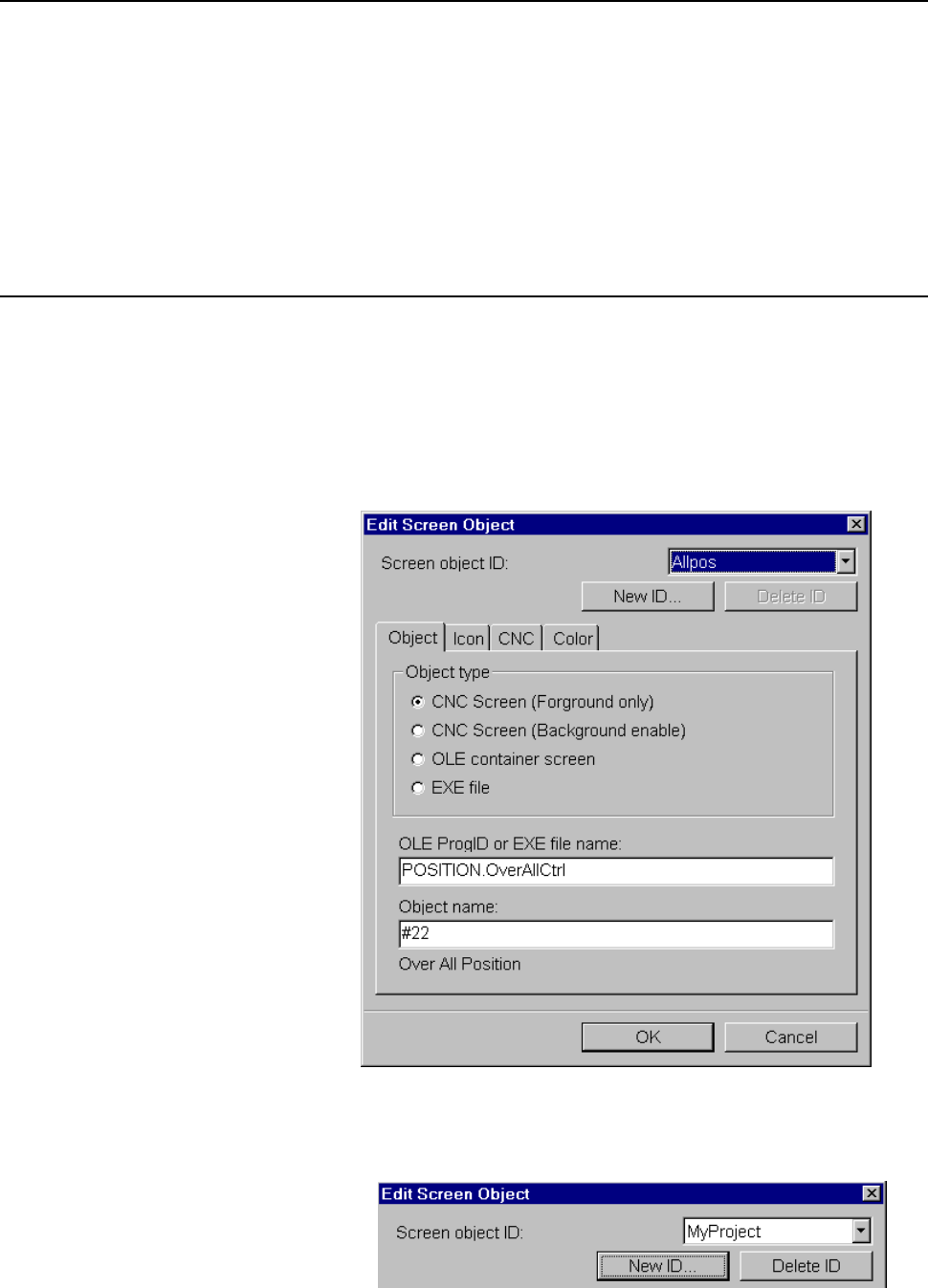

1. If the [Edit Screen Object] screen is currently not displayed, follow the
procedure shown in Section 11.3, "Customizing Screen Objects" to
display the [Edit Screen Object] screen.
2. From the "Screen object ID:" combo box, select the ID of the screen to
be deleted.
