6. SETTING B-62994EN/02

-130-

Explanation

l Measured value input

The following value is set as a tool offset value.

Tool offset value = (Absolute coordinate value) - (Measured value)

When a measured value is input for geometry or wear offset, the

following value is set:

• Entering a measured value as a geometry offset value

Geometry offset value = (Absolute coordinate value) - (Measured

value)

Wear offset value = 0

• Entering a measured value as a wear offset value

Geometry offset value = Not changed

Wear offset value = ((Absolute coordinate value) - (Measured

value)) - (Geometry offset value)

6.3.3 Clearing all tool offset data

All currently set tool offset data can be cleared to zero.

Procedure

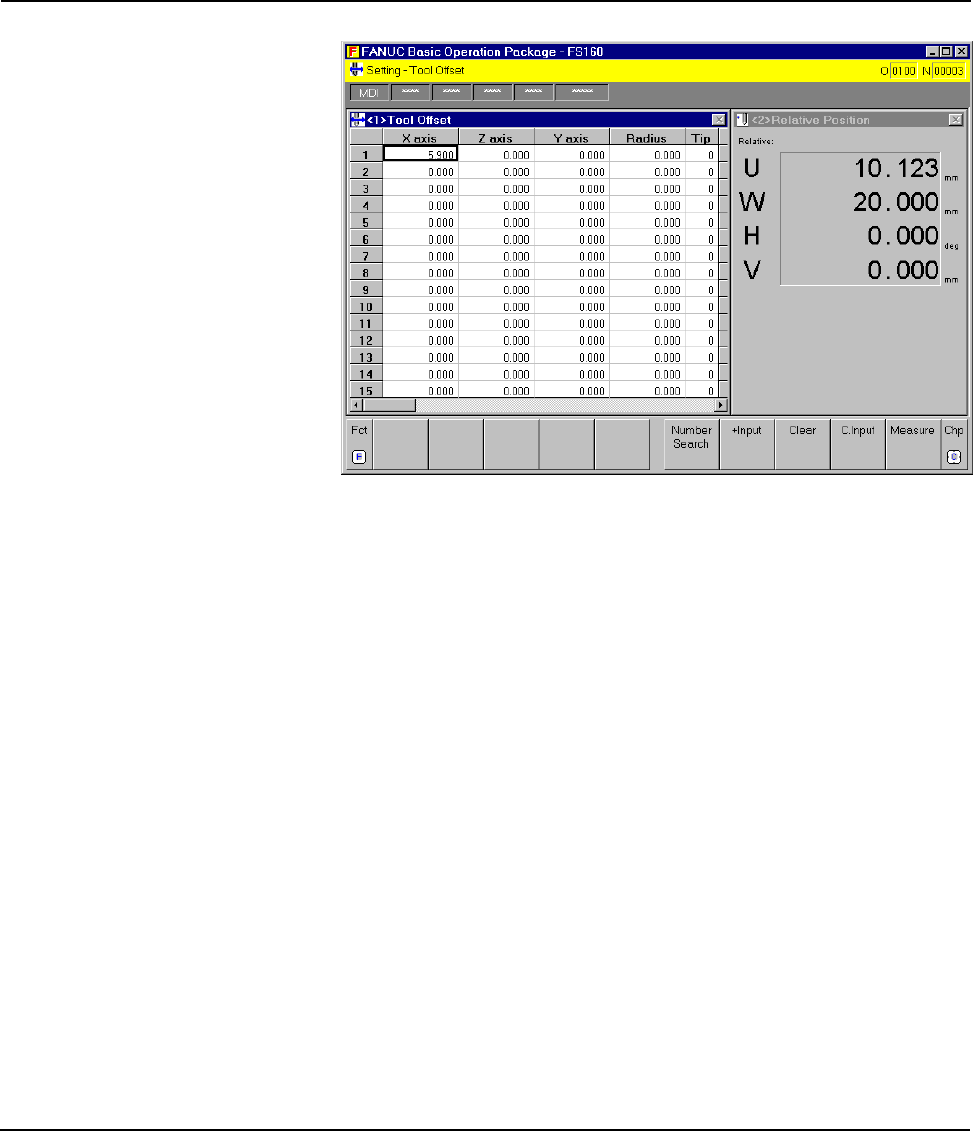

1. When the [Tool Offset] screen is currently not displayed, follow the

procedure described in Section 6.3, "Tool Offset Settings" to display

the [Tool Offset] screen.
